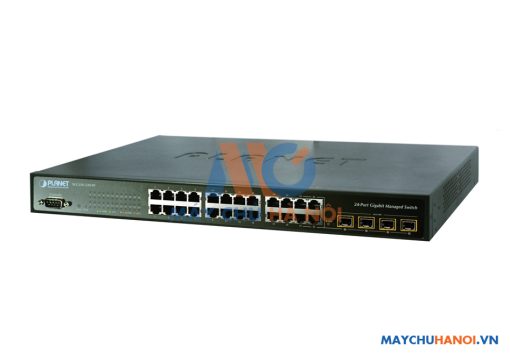

24-port Gigabit Switch PLANET WGSW-24040

Hardware Version

Version 2

Copper Ports

24 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports

SFP/mini-GBIC Slots

4 1000BASE-SX/LX/BX SFP interfaces, shared with port-21 to port-24

Supports 100/1000Mbps dual mode and DDM

Console Port

1 x RS-232 DB9 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

48Gbps / non-blocking

Switch Throughput

35.7Mpps@64Bytes

Address Table

8K entries, automatic source address learning and ageing

Shared Data Buffer

1392 kilobytes

ESD Protection

6KV

Flow Control

IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Jumbo Frame

9Kbytes

Reset Button

< 5 seconds: System reboot

> 5 seconds: Factory default

Dimensions

440 x 200 x 44.5mm, 1U high

Weight

2740g

LED

Power, fan alert

10/100/1000 Link/ Act per RJ45 port

100/1000 Link/ Act per SFP port

Power Consumption

Max. 21.0 watts/ 71.652 BTU

Power Requirements

100~240VAC, 50/60Hz

Layer 2 functionnction

Port Configuration

Port disable / enable

Auto-negotiation 10/100/1000Mbps full and half duplex mode selection

Flow control disable / enable

Port Status

Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status

Port Mirroring

TX / RX / Both

Many-to-1 monitor

VLAN

802.1Q tagged based VLAN

Q-in-Q tunneling

Private VLAN Edge (PVE)

MAC-based VLAN

Protocol-based VLAN

Voice VLAN

IP Subnet-based VLAN

MVR (Multicast VLAN Registration)

Up to 255 VLAN groups, out of 4094 VLAN IDs

Link Aggregation

IEEE 802.3ad LACP / static trunk

12 groups of 8-Port trunk supported

Spanning Tree Protocol

STP, IEEE 802.1D Spanning Tree Protocol

RSTP, IEEE 802.1w Rapid Spanning Tree Protocol

MSTP, IEEE 802.1s Multiple Spanning Tree Protocol

QoS

Traffic classification based, strict priority and WRR

8-Level priority for switching

– Port Number

– 802.1p priority

– 802.1Q VLAN tag

– DSCP/ToS field in IP packet

IGMP Snooping

IGMP (v1/v2/v3) snooping, up to 255 multicast groups

IGMP querier mode support

MLD Snooping

MLD (v1/v2) Snooping, up to 255 multicast groups

MLD Querier mode support

Access Control List

IP-based ACL / MAC-based ACL

Up to 256 entries

Bandwidth Control

Per port bandwidth control

Ingress: 100Kbps~1000Mbps

Egress: 100Kbps~1000Mbps

Layer 3 Functions

IP Interfaces

Max. 8 VLAN interfaces

Routing Table

Max. 32 routing entries

Routing Protocols

IPv4 software static routing

IPv6 software static routing

Management

Basic Management Interfaces

Console / Telnet / Web browser / SNMP v1, v2c

Secure Management Interfaces

SSH, SSL, SNMP v3

SNMP MIBs

RFC-1213 MIB-II

RFC-1493 Bridge MIB

RFC-1643 Ethernet MIB

RFC-2863 Interface MIB

RFC-2665 Ether-Like MIB

RFC-2819 RMON MIB (Group 1, 2, 3 and 9)

RFC-2737 Entity MIB

RFC-2618 RADIUS Client MIB

RFC-2863 IF-MIB

RFC-2933 IGMP-STD-MIB

RFC-3411 SNMP-Frameworks-MIB

RFC-4292 IP Forward MIB

RFC-4293 IP MIB

RFC-4836 MAU-MIB

IEEE 802.1X PAE

LLDP

Standards Conformance

Regulation Compliance

FCC Part 15 Class A, CE

Standards Compliance

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000T

IEEE 802.3x Flow Control and Back pressure

IEEE 802.3ad Port trunk with LACP

IEEE 802.1D Spanning Tree protocol

IEEE 802.1w Rapid Spanning Tree protocol

IEEE 802.1s Multiple Spanning Tree protocol

IEEE 802.1p Class of service

IEEE 802.1Q VLAN Tagging

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP version 1

RFC 2236 IGMP version 2

RFC 3376 IGMP version 3

RFC 2710 MLD version 1

FRC 3810 MLD version 2
