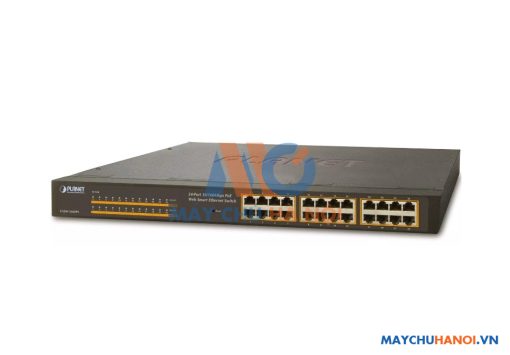

Hardware Specification |
|
|
Ports |
24 10/100Base-TX RJ-45 Auto-MDI/MDI-X interfaces |
|
Switch Processing Scheme |
Store-and-Forward |
|
Throughput (packet per second) |
3.57Mpps@64Bytes |
|
Switch Fabric |
4.8Gbps |
|
Address Table |
8K entries |
|
Share Data Buffer |
1.75Mb embedded memory for packet buffers |
|
Flow Control |
Back pressure for Half Duplex, IEEE 802.3x Pause Frame for Full Duplex |
|
Dimension |
445 x 207 x 45 mm (1U height) |
|
Weight |
2.55kg |
|
Power Requirement |
100~240V AC, 50-60 Hz, 2A |
|
Power Consumption / Dissipation |
Max.135 Watts / 460 BTU |
|
Smart Function |
|
|
System Configuration |
Web interface, SNMP v1 |
|
Port Configuration |
Port Speed Duplex mode selection |
|
Port Disable / Enable |
|
|
Bandwidth Control |
Yes |
|
Broadcast Storm Control |
Yes |
|
Port Statistics |
Display each port’s detail Ethernet traffic counter information |
|
VLAN |
24 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN |
|
Spanning Tree Protocol |
STP, IEEE 802.1D (Spanning Tree Protocol) |
|
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) |
|
|
Port Trunking |
2 groups of 4-Port 10/ 100Base-TX trunk support, up to 800Mbps bandwidth per trunk group |
|
Port Mirroring |
Port mirroring allows monitoring of the traffic across any port in real time |
|
QoS |
Allows to assign low / high priority on each port |
|
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
|
|
MAC Address / TCP & UDP Filter |
Yes |
|
IGMP Snooping v1 / v2 |
Allows to Disable or Enable |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
|
PoE Power Supply Type |
Mid-Span |
|
PoE Power output |
Per Port 48V DC, 350mA . Max. 15.4Watts |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Power Budget |
125Watts |
|
Standards Conformance |
|
|
Regulation Compliance |
FCC Part 15 Class A, CE |
|
Standards Compliance |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3af Power over Ethernet (15.4Watts) |
|
|
IEEE 802.3x Full-Duplex flow control |
|
|
IEEE 802.1Q VLAN |
|
|
IEEE 802.1p QoS |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
Environment |
|
|
Temperature |
Operating: 0~50 Degree C |
|
Storage: -10~70 Degree C |
|
|
Humidity Operating |
5~95%, Storage: 5~95% (Non-condensing) |
