| MODEL | X11DPFR-SN |
| Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 165W, 2 UPI up to 10.4 GT/s |
| Chipset | Intel® C621 |
| Form Factor | Proprietary FatTwin, 6.8” x 19.436” (17.27cm x 49.37cm) |
| Memory Capacity & Slots |
Up to 768GB Registered ECC RDIMM and DDR4- 2666MHz, Up to 1.5TB Registered ECC LRDIMM, in 12 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot, 1 PCI-E 3.0 x16 connector for SMC add-on cards PCI-E 3.0 x16 SIOM slot , 4 NVMe Internal Ports |
| Onboard RAID Controller | Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Single LAN with SIOM (PCI-E 3.0×16) Networking Slot |
| Onboard VGA | 1 VGA port, Aspeed AST2500 BMC |
| USB Ports | 2 USB 3.0 ports (2 rear via headers) |
| Other Onboard I/O Devices | TPM 2.0 Header |
| Manageability | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5 |
| PC Health Monitoring |
+1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT |
| Thermal Control | Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS |
| BIOS | AMI UEFI |

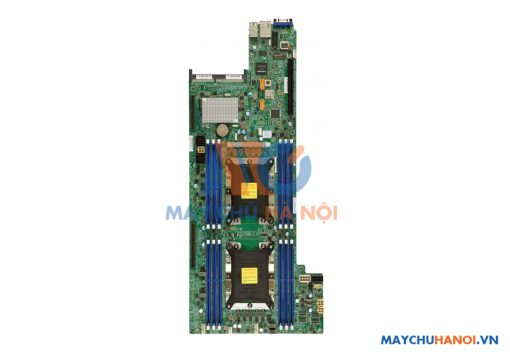

Mainboard Supermicro X11DPFR-SN
Mã: X11DPFR-SN
Bình luận: 0 | Lượt xem: 764
Mainboard Supermicro X11DPFR-SN
Liên hệ
Bảo hành: 12 tháng
Còn hàng
Mainboard Supermicro X11DPFR-SN
Mainboard Supermicro X11DPFR-SN
Hỏi đáp
Chưa có bình luận nào
Chưa có đánh giá nào.
