Product SKUs

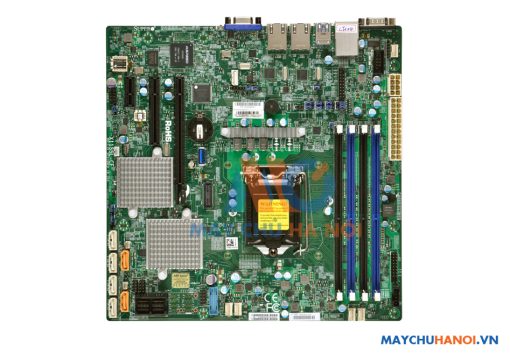

MBD-X11SSL-B

X11SSL (Bulk Pack)

Physical Stats

Form Factor

microATX

Dimensions

9.6″ x 9.6″, (22.4cm x 22.4cm)

Processor/Cache

CPU

Single Socket H4 (LGA 1151) supports:
Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen Core™ i3,
Intel® Pentium®, Intel® Celeron® processors
CPU TDP up to 80W

System Memory

Memory Capacity

4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM

Memory Type

2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

16GB, 8GB, 4GB

Memory Voltage

1.2 V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset

Intel® C236 chipset

SATA

SATA3 (6Gbps) via C236 controller
RAID 0, 1, 5, 10 support

Network Controllers

Dual Intel® I210-AT Gigabit Ethernet LAN ports
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Video

ASPEED AST2400 BMC

Input / Output

SATA

6x SATA3 (6Gbps) ports

LAN

2x RJ45 Gigabit Ethernet LAN ports

USB

5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
6x USB 2.0 ports (2 rear + 4 via header)

Video

1x VGA port

Serial Port / Header

2x COM Ports (1 rear, 1 header)

DOM

2x SuperDOM (Disk on Module) ports

TPM

1x TPM 1.2 20-pin Header

Chassis (Optimized for X11SSL )

1U Chassis:

SC813MFTQC-505CB
SC813MFTQ-R400CB
SC813MTQ-350CB
SC512L-200B
SC512F-350B
SC811TQ-441B
SC113MFAC2-341CB
SC113MFAC2-R606CB
SC510-203B
SC813MFTQC-350CB

2U Chassis:

SC213LT-600LPB
SC825TQ-R720LPB
SC823TQ-653LPB

3U Chassis:

SC833T-653B

Mid/Mini Tower /Chassis:

SC732I-500B
SC731i-300B
SC842TQ-665B
SC842i-500

Expansion Slots

PCI-Express

1x PCI-E 3.0 x8 (in x16) slot
1x PCI-E 3.0 x8 slot
2x PCI-E 3.0 x4 (in x8) slot

System BIOS

BIOS Type

128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup

Management

Software

Intel Node Manager
NMI
SuperDoctor® 5
Watch Dog

Power Configurations

ACPI Power Management
Power-on mode for AC power recovery
