MBD-X8DTi-F -O |

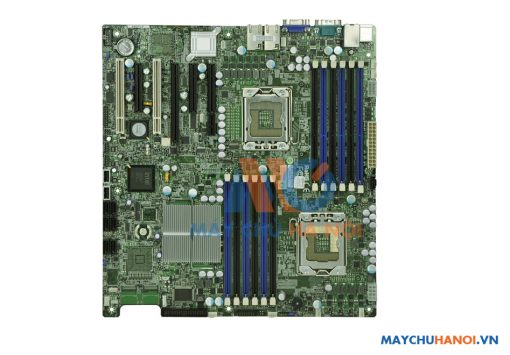

X8DTi-F (Standard Retail Pack) |
|
MBD-X8DTi-F -B |
X8DTi-F (Bulk Pack) |
|
Physical Stats |
|
|
Form Factor |
Extended ATX |
|
Dimensions |
12″ x 13″ (30.5cm x 33cm) |
|
Processor/Cache |
|
|
CPU |
Dual 1366-pin LGA Sockets |
|
Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: |
|
|
Quad-Core Intel® Xeon®Processor 5500 sequence (Nehalem-EP processor) |
|
|
QPI |
up to 6.4 GT/s |
|
System Memory |
|
|
Memory Capacity |
12x 240-pin DIMM sockets |
|
Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory |
|
|
Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory |
|
|
Memory Mirroring supported |
|
|
Memory Type |
1333 / 1066 / 800MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
|
DIMM Sizes |
1GB, 2GB, 4GB, 8GB |
|
Memory Voltage |
1.5 V |
|
Error Detection |
Corrects single-bit errors |
|
Detects double-bit errors (using ECC memory) |
|
|
Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
|
|
On-Board Devices |
|
|
Chipset |
Intel® 5520 (Tylersburg) chipset |
|
ICH10R + IOH-36D |
|
|
SATA |
Intel ICH10R SATA 3.0Gbps Controller |
|
RAID 0, 1, 5, 10 support |
|
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 |
|
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
|
|
Winbond® WPCM450 BMC |
|
|
Network Controllers |
Intel® 82576 Dual-Port Gigabit Ethernet Controller |
|
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
|
|
Intel® I/OAT 3 support for fast, scaleable, and reliable networking |
|
|
VMDq support for better performance of virtualization |
|
|
1x Realtek RTL8201N PHY (dedicated IPMI) |
|
|
Graphics |
Matrox G200eW |
|
Super I/O |
Winbond 83827HF chip |
|
Input / Output |
|
|
Serial ATA |
Six Serial ATA ports |
|
Six SATA hard drives supported |
|
|
Floppy |
1 Floppy controller; 1.44 MB |
|
LAN |
2x RJ45 LAN ports |
|
1x RJ45 Dedicated IPMI LAN port |
|
|
USB |
4x USB rear ports |
|
2x USB on-board |
|
|
4x USB internal headers |
|
|
Total 8 USB 2.0 Compliant |
|
|
VGA |
1x VGA Port |
|
Keyboard / Mouse |
PS/2 keyboard and mouse ports |
|
Serial Port / Header |
1 Fast UART 16550 serial port |
|
1 Fast UART 16550 serial header (Option) |
|
|
Expansion Slots |
|
|
PCI-Express |
1 (x16) PCI-E 2.0 slot |
|
2 (x8) PCI-E 2.0 slots |
|
|
1 (x4) PCI-E slot |
|
|
PCI |
2x 33MHz PCI slots |
|
System BIOS |
|
|
BIOS Type |
32Mb SPI Flash EEPROM with AMI® BIOS |
|
BIOS Features |
Plug and Play (PnP) |
|
PCI 2.2 |
|
|
ACPI up to 3.0 |
|
|
USB Keyboard support |
|
|
Management |
|
|
Software |
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
|
Super Doctor III |
|
|
Power Configurations |
ACPI / ACPM Power Management |
|
PC Health Monitoring |
|
|
CPU |
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
|
6-Phase-switching voltage regulator |
|
|
FAN |
Total of eight fan headers supporting up to 8 fans |
|
Eight 4-pin fan headers |
|
|
8x fans with tachometer status monitoring |
|
|
Support 3-pin fans (w/o speed control) |
|
|
Low noise fan speed control (4-pin fan only) |
|
|
Temperature |
Monitoring for CPU and chassis environment |
|
Thermal Control for 8x fan connectors |
|
|
PECI |
|
|
Other Features |
Chassis intrusion detection |
|
Chassis intrusion header |
|
|
Operating Environment / Compliance |
|
|
RoHS |
RoHS Compliant 6/6, Pb Free |
|
Environmental Spec. |
Operating Temperature: 10° to 35° C (50° to 95°F) |
|
Non-operating Temperature: -40° to 70° C (-40° to 158° F) |
|
|
Operating Relative Humidity: 8% to 90% (non-condensing) |
|
|
Non-operating Relative Humidity: 5 to 95% (non-condensing) |
|
