| MODEL | X11DPi-NT |
| Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
| Chipset | Intel® C622 |
| Form Factor | E-ATX, 12” x 13” (30.48cm x 33.02cm) |
| Memory Capacity & Slots | Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
| Expansion Slots | 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110, 2 PCI-E 3.0 NVMe x4 Internal Ports |
| Onboard RAID Controller | Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Dual LAN with 10GBase-T with Intel® X557 |
| Onboard VGA | 1 VGA port, Aspeed AST2500 BMC |
| USB Ports | 5 USB 3.0 ports (2 rear + 2 via headers + 1 Type A) |
| Other Onboard I/O Devices | 2 ports SuperDOM, TPM 2.0 Header, 1 COM Ports (1 rear), |
| Manageability | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring | +1.8V, +12V, +3.3V, +5V, +5V standby |
| Thermal Control | 8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, PWM fan speed control |
| Other Features | Chassis intrusion detection, Node Manager Support, RoHS |
| BIOS | AMI UEFI |

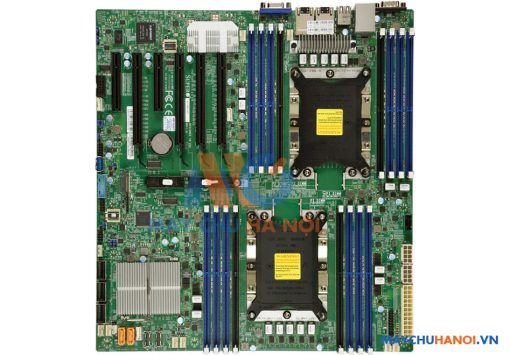

Mainboard Supermicro MBD-X11DPi-NT
Mã: MBD-X11DPi-NT
Bình luận: 0 | Lượt xem: 2156
Mainboard Supermicro MBD-X11DPi-NT
14.570.000 ₫
Bảo hành: 12 tháng
Còn hàng
Mainboard Supermicro MBD-X11DPi-NT
Mainboard Supermicro MBD-X11DPi-NT
