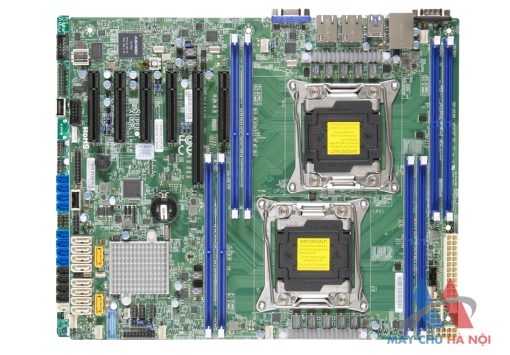

Supermicro X10DRL-i Server Motherboard Dual socket R3 LGA 2011-3 DDR4 2133/1866/1600

Name: Supermicro X10DRL-i Server Motherboard Dual socket R3 LGA 2011-3 DDR4 2133/1866/1600
SKU: MAIN001
Price: 9500000 VND
Availability: InStock

Mã: MAIN001 Bình luận: 0 | Lượt xem: 2931

Product SKUs MBD-X10DRL-i -O X10DRL-i (Standard Retail Pack) MBD-X10DRL-i -B X10DRL-i (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12″ x 10″ (30.48cm x 25.4cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP **) Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to […]

Bảo hành: 12 tháng

Còn hàng

Supermicro X10DRL-i Server Motherboard Dual socket R3 LGA 2011-3 DDR4 2133/1866/1600

Mô tả

Product SKUs

MBD-X10DRL-i -O	X10DRL-i (Standard Retail Pack)
MBD-X10DRL-i -B	X10DRL-i (Bulk Pack)


Physical Stats

Form Factor	ATX
Dimensions	12″ x 10″ (30.48cm x 25.4cm)


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP )** Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM sockets Up to 512GB ECC LRDIMM, 256GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C612 Express chipset
SATA	I-SATA 4 and I-SATA 5 support SATA DOM SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i210 Gigabit Ethernet controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8211E PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC


Input / Output

SATA	10x SATA3 (6Gbps) ports
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	4x USB 3.0 ports (2 rear + 2 via header) 5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Video	1x VGA port
Serial Port / Header	2x Fast UART 16550 port / 1 Header
DOM	DOM (Disk on Module) power connector
TPM	1x TPM 1.2 20-pin Header


SuperServer(s) with X10DRL-i

Model(s)	SYS-6018R-MTR


Expansion Slots

PCI-Express	3 PCI-E 3.0 x8 1 PCI-E 3.0 x16 1 PCI-E 3.0 x4 (in x8) 1 PCI-E 2.0 x4 (in x8)


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management

Software	SuperDoctor® 5 Intel® Node Manager 3.0 Watch Dog IPMI 2.0
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. 5 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free Dual Cooling Zones



Operating Environment

Operating Temperature Range	10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)
