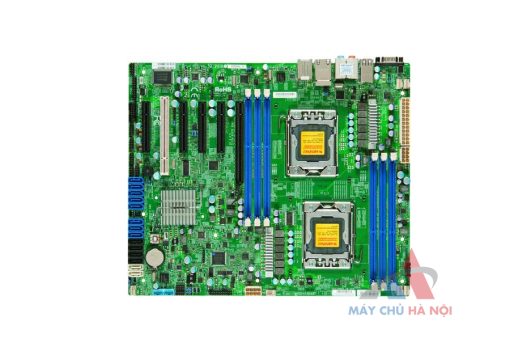

Supermicro X9DAL-i Server Motherboard Dual LGA 1356 DDR3 1600

Name: Supermicro X9DAL-i Server Motherboard Dual LGA 1356 DDR3 1600
SKU: Supermicro X9DAL-i
Price: 7638000 VND
Availability: InStock

Mã: Supermicro X9DAL-i Bình luận: 0 | Lượt xem: 1939

Product SKUs MBD-X9DAL-i -O X9DAL-i (Standard Retail Pack) MBD-X9DAL-i -B X9DAL-i (Bulk Pack) Physical Stats Dimensions 12″ x 10″ (30.48cm x 25.4cm) Processor/Cache CPU Intel® Xeon® processor E5-2400 and E5-2400 v2 (up to 95W TDP **) Dual Socket B2 (LGA 1356) Cache Up to 25MB System Bus QPI up to 8 GT/s […]

Bảo hành: 12 tháng

Còn hàng

Supermicro X9DAL-i Server Motherboard Dual LGA 1356 DDR3 1600

Mô tả

Product SKUs

MBD-X9DAL-i -O	X9DAL-i (Standard Retail Pack)
MBD-X9DAL-i -B	X9DAL-i (Bulk Pack)


Physical Stats

Dimensions	12″ x 10″ (30.48cm x 25.4cm)


Processor/Cache

CPU	Intel® Xeon® processor E5-2400 and E5-2400 v2 (up to 95W TDP )** Dual Socket B2 (LGA 1356)
Cache	Up to 25MB
System Bus	QPI up to 8 GT/s
	** Motherboard supports this maximum TDP. Please verify your system can thermally support


System Memory

Memory Capacity	6x 240-pin DDR3 DIMM sockets Up to 384GB DDR3 ECC LRDIMM Up to 192GB DDR3 ECC Registered memory (RDIMM) Up to 48GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM)
Memory Type	1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs * Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C602 chipset
AHCI SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SCU SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10
Network Controllers	Intel® 82574L Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header


Input / Output

AHCI SATA	2x SATA 3.0 ports (6Gbps) 4x SATA 2.0 ports (3Gbps)
SCU SATA	4x SATA 2.0 ports (3Gbps)
LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports (Renesas uPD720200A; 2 rear + 2 via header) 10 USB 2.0 ports (4 rear + 6 via header)
Audio	7.1 HD Audio with optical S/PDIF
Keyboard/Mouse	PS/2 Keyboard Combo port
Serial Port / Header	2 Fast UART 16550 ports / 1 rear and 1 header
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header


Chassis (Optimized for X9DAL-i )

2U Chassis	CSE-213LT-600LPB CSE-825TQ-600LPB
Mid-Tower	CSE-732D4-500B
Tower / 4U Rackmount	CSE-743T-665B CSE-743TQ-865B-SQ
Important Chassis Notes	To support the new generation Intel® Xeon® processor-based motherboards,Revision M chassis is recommended. Please talk to your sales representative for details.


SuperServer(s) with X9DAL-i

Model(s)	SYS-7037A-iL


Expansion Slots

PCI-Express	1x PCI-E 3.0 x16 3x PCI-E 3.0 x8 (1 allows a x16 card) 1x PCI-E 3.0 x4 (in x8) 1x PCI-32 (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management

Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / APM Power Management Main Switch Override Mechanism CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Suspend to RAM (STR)


PC Health Monitoring

Voltage	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 5+1 Phase-switching voltage regulator
FAN	6x 4-pin fan headers (up to 6 fans) 6x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 6x Fan Connectors I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support RoHS



Operating Environment

Operating Temperature Range	10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)
