MODEL | X11DPH-Tq |
Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s |
Chipset | Intel® C626 |
Form Factor | E-ATX, |
Memory Capacity & Slots | Up to 1TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
Expansion Slots | 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 Slot 1 can be used with optional SLM for 4 port 10G SFP+ or RJ45 QAT support M.2 Interface: PCI-E 3.0 x4 and PCI-E 3.0 x4 M.2 Form Factor: 22110 M.2 Key: M-Key (RAID 0,1 support) |
Onboard RAID Controller | Intel® C626 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
Onboard LAN | Dual LAN with 10GBase-T with Intel® X557 |
Onboard VGA | 1 VGA port, |
USB Ports | 7 USB 3.0 ports (4 rear + 2 via headers + 1 Type A) |
Other Onboard I/O Devices | 2 ports SuperDOM, TPM 2.0 Header, 2 COM Ports (1 rear, 1 header) |
Manageability | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
PC Health Monitoring | +1.8V, +12V, +3.3V, +5V, +5V standby, 6+1 Phase-switching voltage regulator, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT |
Thermal Control | 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control |
Other Features | ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID |
BIOS | UEFI 256Mb |

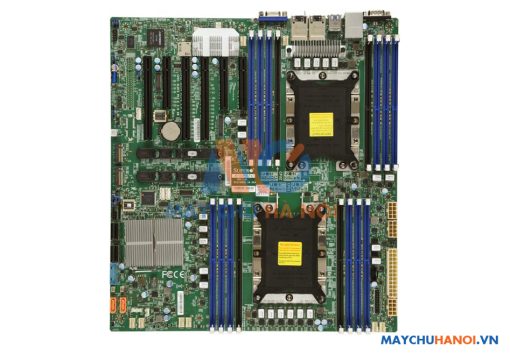

Mainboard Supermicro MBD-X11DPH-TQ
- CPU Support: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s - RAM Support: Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);
Bảo hành: 12 tháng
- CPU Support: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s - RAM Support: Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);
Mainboard Supermicro MBD-X11DPH-TQ
