Product SKUs |
|

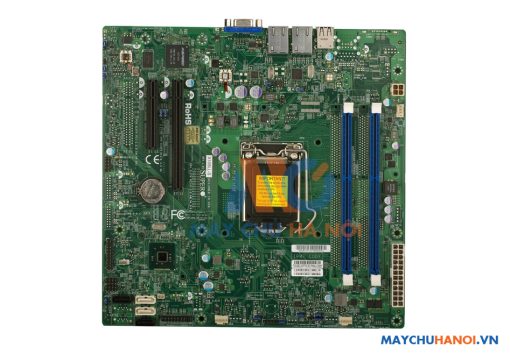

| MBD-X10SLL-S | X10SLL-S (Bulk Pack) |
Physical Stats |
|
| Form Factor | uATX |
| Dimensions | 9.6″ x 9.6″, (24.4cm x 24.4 cm) |
Processor/Cache |
|
| CPU | Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron processors (up to 65W) Single Socket H3 (LGA 1150) |
System Memory |
|
| Memory Capacity | 2x 240-pin DDR3 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | 1.5 V, 1.35 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
| Chipset | Intel® C222 Express PCH |
| SATA | SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 |
| Network Controllers | Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Video | BMC integrated Aspeed AST1200 |
Input / Output |
|
| Serial ATA | 2x SATA3 (6Gbps) ports 2x SATA2 (3Gbps) ports |
| LAN | 2x Gigabit Ethernet LAN ports |
| USB | 4x USB 2.0 ports (2 rear, 2 via header) |
| Video | 1x VGA D-Sub Connector |
| Serial Port / Header | 1x COM port (1 header) |
| DOM | SATA DOM (Disk on Module) power connector support |
| TPM | 1x TPM 1.2 20-pin Header |
Expansion Slots |
|
| PCI-Express | 1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support |
Management |
|
| Software | SuperDoctor® III Watch Dog NMI |
| Power Configurations | ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on |
