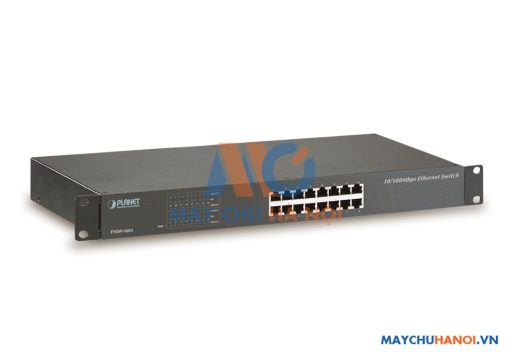

16-Port 10/100Base-TX Switch PLANET FNSW-1601

Model

FNSW-1601

Standard Compliance

IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX

10/100Base-TX Ports

16

Network Speed

TP: Auto-Negotiation, 10/20Mbps, 100/200Mbps

Switching Architecture

Store & Forward

Filtering / Forwarding Rate

1 0Mbps: 148800 packets / second
10Mbps : 14880 packets / second

MAC entry

8K

LED Indicators/port

2 (Link/Act, 100Mbps)

Data Buffer

512KBytes

Power Supply

100~240VAC auto-sensing

Operation Environment

Temperature 0~50 degree C (operating)
Humidity: 0~90%, non-condensing

Dimension (W x D x H)

444 x 120 x 44 mm

Network Media

1 0Base-TX: RJ-45 STP/UTP, Category 5 cable
10Base-T: RJ-45 STP/UTP, Category 3~5 cable

Certification

FCC class A, CE
