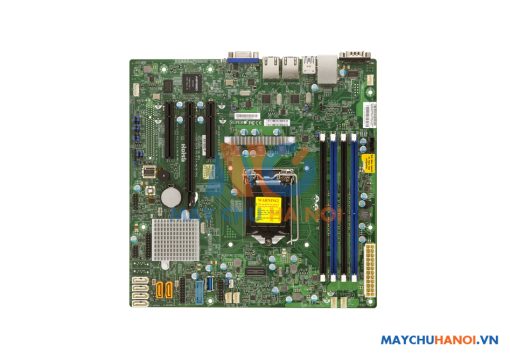

Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core i3 series, Intel® Celeron® and Intel® Pentium®
Intel reg; C232 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel® i210-AT
6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
I O: 1 VGA, 1 COM, TPM header
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))
Integrated IPMI 2.0 and KVM with Dedicated LAN
