| Product SKUs | |
| MBD-X8SIL -O | X8SIL (Standard Retail Pack) |
| MBD-X8SIL -B | X8SIL (Bulk Pack) |
| Physical Stats | |
| Form Factor | Micro ATX |
| Dimensions | 9.6″ x 9.6″ (24.4cm x 24.4cm) |
| Processor/Cache | |
| CPU | LGA 1156 Socket Intel® Xeon® X3400 series Intel® Xeon® L3400 series |
| System Memory | |
| Memory Capacity | 4x 240-pin DIMM sockets Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) 1333 / 1066 / 800 MHz Note: Supports 1-Gb and 2-Gb x8 devices only |
| Memory Type | 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | 1.5 V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| Chipset | Intel® 3400 chipset |
| SATA | 4x SATA (3 Gbps) |
| Network Controllers | 2x Intel® 82574L Gigabit Ethernet Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| VGA | Matrox G200eW 16MB DDR2 |
| Super I/O | Winbond 83627DHG-P |
| Clock Generator | CK505 |
| Input / Output | |
| Serial ATA | 4 SATA ports 4 SATA hard drives supported |
| LAN | 2x RJ45 LAN ports |
| USB | 2x USB rear ports 1x USB on-board 1x USB internal header (2 ports) Total 5 USB 2.0 Compliant |
| VGA | 1x VGA port |
| Keyboard / Mouse | PS/2 keyboard and mouse ports |
| Serial Port / Header | 1x Fast UART 16550 serial port 1x internal header |
| Expansion Slots | |
| PCI-Express | 2 (x8) PCI-E 2.0 slot 1 (x4) PCI-E (using x8 slot) |
| PCI | 1 32-bit PCI slot |
| System BIOS | |
| BIOS Type | 32Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 |
| Management | |
| Software | Super Doctor III Watch Dog NMI |
| Power Configurations | ACPI / ACPM Power Management Main Switch Override Mechanism Wake-On-LAN (WOL) header Keyboard Wakeup from Soft-Off Power-on mode for AC power recovery Internal/External modem ring-on |
| PC Health Monitoring | |
| CPU | Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | Total of 5 fan headers supporting up to 5 fans Five 4-pin fan headers 5x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI |
| LED | CPU / System Overheat LED +5V Standby alert LED |
| Other Features | Chassis intrusion detection Chassis intrusion header |

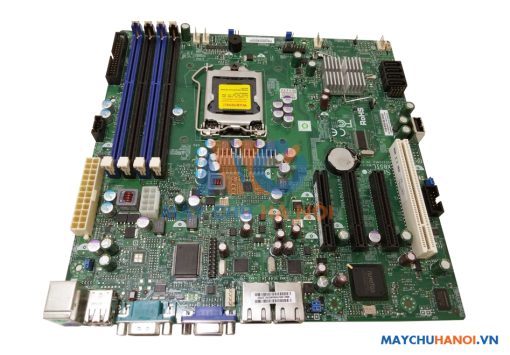

Mainboard Supermicro X8SIL
Mã: O-MAIN011
Bình luận: 0 | Lượt xem: 1067
Mainboard Supermicro X8SIL
Liên hệ
Còn hàng
Mainboard Supermicro X8SIL
Mainboard Supermicro X8SIL
