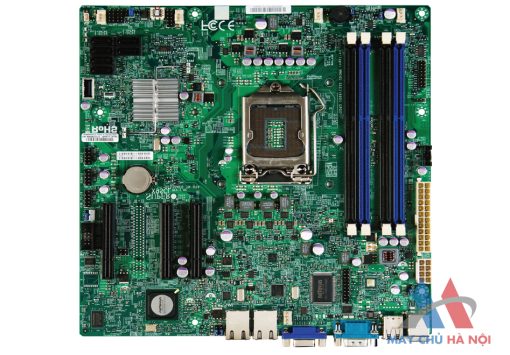

Supermicro X9SCL Server Motherboard Single Intel LGA 1155 DDR3 1333/1600

Thông số kỹ thuật chi tiết Supermicro X9SCL Server Motherboard Single Intel LGA 1155 DDR3 1333/1600

• MBD-X9SCL -B :

  X9SCL (Bulk Pack)

• Form Factor :

  uATX

• Dimensions:

  9.6" x 9.6", (24.4cm x 24.4 cm)

• CPU :

  Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *** *
  Socket H2 (LGA 1155)

• Memory Capacity :

  4x 240-pin DDR3 DIMM sockets
  Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

• Memory Type :

  1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

• DIMM Sizes :

  8GB, 4GB, 2GB, 1GB

• Memory Voltage :

  1.5 V, 1.35V

• Error Detection :

  Corrects single-bit errors
  Detects double-bit errors (using ECC memory)

• Chipset :

  Intel® C202 PCH chipset

• SATA:

  6x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10

• Network Controllers :

  Intel® 82579LM and 82574L, 2x Gigabit LAN ports
  Virtual Machine Device Queues High efficient I/O overhead
  Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• VGA:

  BMC integrated Matrox G200

• Super I/O :

  Nuvoton NCT6776F

• Input / Output:
• Serial ATA :

  6 SATA 2.0 ports
  6 SATA hard drives supported

• LAN:

  2x Gigabit Ethernet LAN ports: Intel® 82579LM and Intel® 82574L

• USB:

  9x USB 2.0 ports total
  (2x rear + 6x via header + 1x type A)

• VGA:

  1x VGA port

• Serial Port / Header:

  2x Fast UART 16550 serial port
  (one header and one rear port)

• DOM:

  1x DOM (Disk on Module) power connector

• TPM:

  1x TPM Header

• Chassis ( Optimized for X9SCL ):
• 1U Chassis :

  CSE-113MTQ-330CB
  CSE-113MTQ-R400CB
  CSE-512F-350B
  CSE-512F-441B
  CSE-811TQ-R441B
  CSE-813MTQ-350C
  CSE-813MTQ-441CB
  CSE-813MTQ-R400CB

• Important Chassis Notes:

  To support the new generation Intel® Xeon® processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details.

• Expansion Slots:

  2 (x8) PCI-E 3.0 in x8 slots***
  1 (x4) PCI-E 2.0 in x8 slots

• Power Configurations :

  Main Switch Override Mechanism
  Power-on mode for AC power recovery
  Internal/External modem ring-on

• FAN:

  Total of 5 fan headers supporting up to 5 fans
  Five 4-pin fan headers
  5x fans with tachometer status monitoring
  Status monitor for speed control
  Status monitor for on/off control
  Support 3-pin fans (w/o speed control)
  Low noise fan speed control
  Pulse Width Modulated (PWM) fan connectors
