| MODEL | X11DPU-XLL |
| Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, 2 UPI up to 10.4 GT/s |
| Chipset | Intel® C621 |
| Form Factor | Proprietary Ultra/WIO, 17” x 16.8” (43.18cm x 42.67cm) |
| Memory Capacity & Slots | Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x32 Left Riser Slot, 1 PCI-E 3.0 x8 Center Right Riser Slot, 1 PCI-E 3.0 x40 Far Right Riser Slot, 4 PCI-E 3.0 NVMe x4 Internal Ports |
| Onboard RAID Controller | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Networking options provided via Ultra Riser |
| Onboard VGA | 1 VGA port, Aspeed AST2500 BMC |
| USB Ports | 3 USB 3.0 ports (2 rear via headers + 1 Type A) |
| Other Onboard I/O Devices | TPM 2.0 Header, 1 COM Ports (1 rear), 2 ports SuperDOM |
| Manageability | IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring | +12V, +3.3V, +5V, +5V standby, VBAT |
| Thermal Control | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Other Features | 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC |
| BIOS | AMI UEFI |

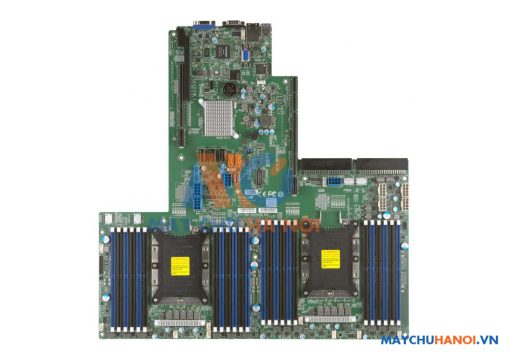

Mainboard Supermicro X11DPU-XLL
Mã: X11DPU-XLL
Bình luận: 0 | Lượt xem: 842
Processor : Intel® Xeon® Scalable Processors
Dual Socket P (LGA 3647) supported, 2
UPI up to 10.4 GT/s
Chipset : Intel® C621
Liên hệ
Bảo hành: 12 tháng
Còn hàng
Processor : Intel® Xeon® Scalable Processors
Dual Socket P (LGA 3647) supported, 2
UPI up to 10.4 GT/s
Chipset : Intel® C621
Mainboard Supermicro X11DPU-XLL
