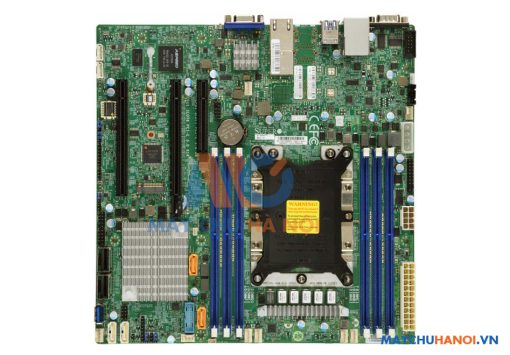

| MODEL | X11SPM-TPF |
| Processor | Intel® Xeon® Scalable Processors. Single Socket P (LGA 3647) supported, CPU TDP support 165W |
| Chipset | Intel® C622 |
| Form Factor | microATX, 9.6” x 9.6” (24.38cm x 24.38cm) |
| Memory Capacity & Slots |
6x 288-pin DDR4 DIMM slots Up to 768GB ECC 3DS LRDIMM Up to 384GB ECC LRDIMM Up to 192GB ECC RDIMM |
| Expansion Slots | 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2242, 2280 |
| Onboard RAID Controller | Intel® C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Dual LAN with 10G SFP+ with Inphi CS4227 |
| Onboard VGA | 1 VGA port, Aspeed AST2500 BMC |
| USB Ports | 6 USB 2.0 ports (2 rear + 4 via headers), 5 USB 3.0 ports (2 rear + 2 via headers + 1 Type A) |
| Other Onboard I/O Devices | 2 ports SuperDOM, TPM Header, 2 COM Ports (1 rear, 1 header), |
| Manageability | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring |
+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT |
| Thermal Control | 8x 4-pin fan headers (up to 8 fans), Fan speed control, Overheat LED indication, PWM fan speed control, System level control |
| Other Features | ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL |
| BIOS | AMI UEFI |
