Intel Serverboard S3420GPLC

Name: Intel Serverboard S3420GPLC
SKU: S3420GPLC
Price: 4800000 VND
Availability: InStock

Mã: S3420GPLC Bình luận: 0 | Lượt xem: 1911

Feature Description Processor Support for one Xeon Processor 3400 Series or Intel Core Processor i3-500 series or Intel Pentium processor C6950 in FC-LGA 1156 socket package– 2.5 GT/s point to poit DMI interface to PCH– LGA 1156 pin socket Memory Two memory channels with support for 1066/1333 Mhz ECC Unbuffered (UDIMM) or ECC Registered (RDIMM) […]

Bảo hành: 12 tháng

Còn hàng

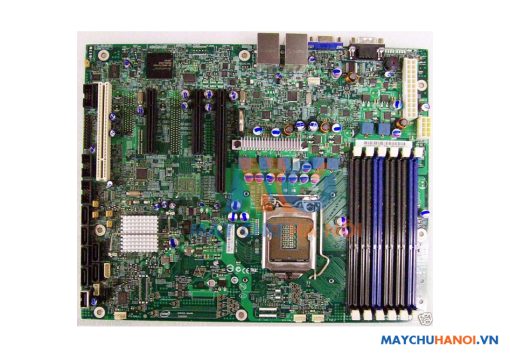

Intel Serverboard S3420GPLC

Mô tả

<td valign="top Support for Intel Serverboard S3420GPC

Feature	Description
Processor	Support for one Xeon Processor 3400 Series or Intel Core Processor i3-500 series or Intel Pentium processor C6950 in FC-LGA 1156 socket package – 2.5 GT/s point to poit DMI interface to PCH – LGA 1156 pin socket
Memory	Two memory channels with support for 1066/1333 Mhz ECC Unbuffered (UDIMM) or ECC Registered (RDIMM) (Intel Xeon Processor 3400 series only) DDR3: – Up to 2 UDIMMs or 3 RDIMM (Intel Xeon Processor 3400 series only) per channel – 32GB max with x8 ECC RDIMM (2 Gb DRAM) and 16GB max wwith x8 ECC UDIMM (2 Gb DRAM)
Chipset	– Support for Intel 3420 chipset Platform Controller Hub (PCH) – ServerEngines* LLC Pilot II BMC controller (Intergrated BMC)
I/O	External connection: – DB-15 video connectors – DB-9 serial Port A connector – Four ports on two USB/LAN combo connectors at rear of board Internal connectors : – Two USB 2×5 pin headers, each supporting two USB 2.0 – One 2×5 Serial Port B header – Six SATA II connectors
Add-in PCI Card, PCI Express card	– One PCI 32/33 (5V) slot – One PCI Express x4 slot (x8 mechanical) – One PCI Express 2.0 x8 slot (x8 mechanical) – One PCI Express 2.0 x8 slot (x16 mechanical)
System Fan Support	Five 4-pin fan headers supporting for system fan and one processor
Video	Onboard Server Engine* LLC Pilot II* Controller: – Integrated 2D Video controller with 8 MB Video memory – 64-MB DDR2 667 Mhz memory
Onboard Hard Drive	Support for six serial ATA II hard drives through six onboard SATA II connectors with SW RAID 0, 1, 5, 10
Raid Support	– Intel Rapid Storage Raid through onboard SATA connectors provides SATA Raid 0, 1, 5, 10 – Intel Embedded Server Raid technology II through onboard SATA connectors provides SATA Raid 0, 1, 10
LAN	– One Gigabit Ethernet device 82574L connect to PCI-E x1 interfaces on the PCH – One Gigabit Ethernet PHY 82578DM connected to PCH through PCI-E x1 interface
Server Management	Onboard LLC Pilot II Controller (iBMC): – Integrated Base Management Controller (BMC), IPMI 2.0 compliant – Integrated 2D video controller on PCI-E x1
Management software	– Intel® System Management Software 3.x – Intel® Deployment Assistant 3.5
