SPECIFICATIONS
| Essentials | ||
| Status | Launched | |
| Launch Date | Q2'12 | |
| Expected Discontinuance | 2014 | |
| Limited 3-year Warranty | Yes | |
| Extended Warranty Available for Purchase (Select Countries) | Yes | |
| # of QPI Links | 1 | |
| Board Form Factor | microATX | |
| Chassis Form Factor | Rack or Pedestal | |
| Socket | LGA 1155 | |
| Integrated Systems Available | Yes | |
| Integrated BMC with IPMI | N/A | |
| Rack-Friendly Board | Yes | |
| Embedded Options Available | No | |

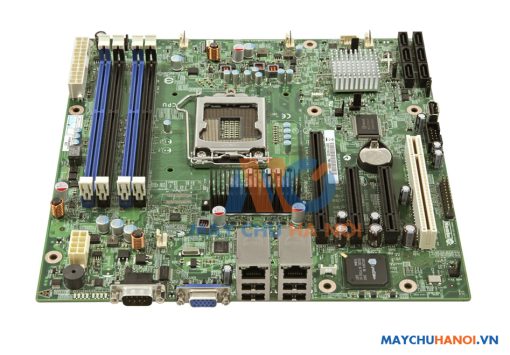

| Included Items | (1) Intel® Server Board S1200BTSR and Attention document. Below items are not included in 10 pack sku, but included In Disti 5 Pack only: I/O shield, (2) SATA cables, configuration labels, Intel® Server Deployment & Management DVD, Quick Start User’s Guide. | |
| Recommended Customer Price | N/A | |
| Description | Sub-Entry level UP server board for pedestal or rack chassis. | |
| Target Market | Small Business/1st Server | |
| Additional Information URL | Link | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 32 GB | |
| Memory Types | DDR3 ECC UDIMM 1066 1333 1600 1066LV 1333LV 1600LV | |
| # of Memory Channels | 2 | |
| Max Memory Bandwidth | 1600 GB/s | |
| # of DIMMs | 4 | |
| ECC Memory Supported ‡ | Yes | |
| Graphics Specifications | ||
| Integrated Graphics ‡ | Yes | |
| Graphics Output | VGA | |
| Expansion Options | ||
| PCI Support | 32 bit /33MHz | |
| PCI Express Revision | 3.0 | |
| Max # of PCI Express Lanes | 4 | |
| PCIe x8 Gen 3 | 1 | |
| PCIe x16 Gen 3 | 1 | |
| PCIe x8 Gen 2.x | 1 | |
| I/O Specifications | ||
| USB Revision | 2.0 | |
| # of USB Ports | 7 | |
| USB 2.0 Configuration (Back + Internal) | 7 | |
| Total # of SATA Ports | 6 | |
| RAID Configuration | Intel® RST (0, 1, 10, 5) | |
| # of Serial Ports | 1 | |
| # of LAN Ports | 2 | |
| Integrated LAN | 2x 1GbE | |
| Integrated SAS Ports | 0 | |
| Integrated InfiniBand* | No | |
| Package Specifications | ||
| Max CPU Configuration | 1 | |
| Low Halogen Options Available | See MDDS | |
| Advanced Technologies | ||
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | No | |
| Intel® vPro Technology ‡ | No | |
| Intel® ME Firmware Version | No | |
| Intel® Remote Wake Technology | No | |
| Intel® Remote PC Assist Technology | No | |
| Intel® Remote Management Module Support | No | |
| Intel® Node Manager | No | |
| Intel® CIRA Technology | No | |
| TPM | Yes | |
| TPM Version | 1.2 | |
| Intel® Quick Resume Technology | No | |
| Intel® Quiet System Technology | No | |
| Intel® HD Audio Technology | No | |
| Intel® AC97 Technology | No | |
| Intel® Matrix Storage Technology | No | |
| Intel® Fast Memory Access | No | |
| Intel® Flex Memory Access | No | |
| Intel® Advanced Management Technology | No | |
| Intel® Server Customization Technology | Yes | |
| Intel® Build Assurance Technology | Yes | |
| Intel® Efficient Power Technology | No | |
| Intel® Quiet Thermal Technology | No | |
| Intel® Data Protection Technology | ||
| AES New Instructions | Yes | |
| Intel® Platform Protection Technology | ||
| Trusted Execution Technology ‡ | No | |
| Anti-Theft Technology | No | |
