SPECIFICATIONS
| Essentials | ||
| Status | Launched | |
| Launch Date | Q2'13 | |
| Expected Discontinuance | 2017 | |
| Limited 3-year Warranty | Yes | |
| Extended Warranty Available for Purchase (Select Countries) | Yes | |
| # of QPI Links | 1 | |
| Board Form Factor | uATX | |
| Chassis Form Factor | Rack | |
| Socket | LGA1150 | |
| Integrated Systems Available | Yes | |
| Integrated BMC with IPMI | Yes | |
| Rack-Friendly Board | Yes | |
| Embedded Options Available | Yes | |
| Max TDP | 95 W | |
| Included Items | Intel® Server Board S1200V3RPMwith (4)SATA Cables, (1)Intel® Server Deployment & Management DVD, (1) attention document, (1) Quick Start User’s Guide | |
| Recommended Customer Price | N/A | |

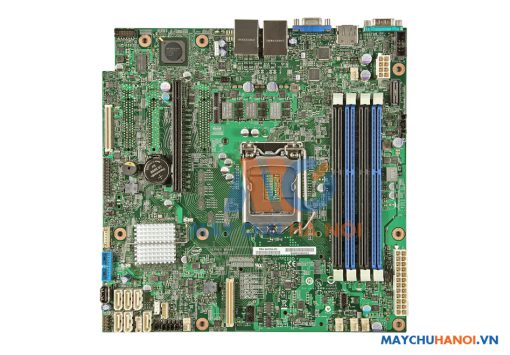

| Description | Intel® Server Board S1200V3RPM with Intel® C226 chipset, supports supports 4 UDIMM sockets with two channel native 1600MHz | |
| Target Market | Small Business/1st Server | |
| Additional Information URL | Link | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 32 GB | |
| Memory Types | DDR3 ECC UDIMM 1333/1600 MT/s | |
| # of Memory Channels | 2 | |
| Max Memory Bandwidth | 25.6 GB/s | |
| # of DIMMs | 4 | |
| ECC Memory Supported | Yes | |
| Graphics Specifications | ||
| Integrated Graphics | Yes | |
| Graphics Output | VGA | |
| # of Displays Supported | 2 | |
| Expansion Options | ||
| PCI Express Revision | 3.0 | |
| # of PCI Express Lanes | 16 | |
| PCIe x8 Gen 3 | 1 | |
| Intel® IO Expansion Module PCIe x8 Gen 3 | 1 | |
| Intel® Internal IO Expansion Module PCIe x8 Gen 3 | 1 | |
| I/O Specifications | ||
| USB Revision | 3.0 & 2.0 | |
| # of USB Ports | 4 | |
| Total # of SATA Ports | 6 | |
| RAID Configuration | Intel® RST (0, 1, 10, 5) | |
| # of Serial Ports | 1 | |
| # of LAN Ports | 2 | |
| Integrated LAN | Dual 1GbE | |
| Embedded USB (eUSB) Solid State Drive Option | Yes | |
| Package Specifications | ||
| Max CPU Configuration | 1 | |
| Low Halogen Options Available | See MDDS | |
| Advanced Technologies | ||
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes | |
| AES New Instructions | Yes | |
| Intel® Remote Management Module Support | Yes | |
| TPM Version | TPM 1.2 | |
| Intel® Matrix Storage Technology | Yes | |
| Intel® Advanced Management Technology | Yes | |
| Intel® Server Customization Technology | Yes | |
