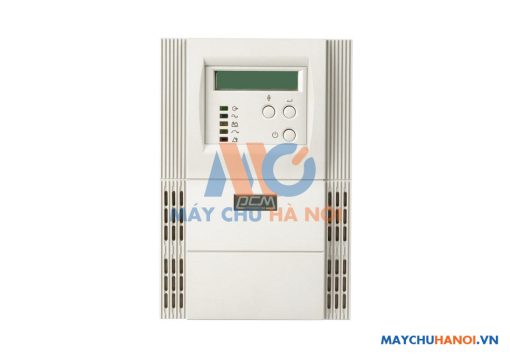

UPS Powercom VGD-3000

MODEL

VGD-2000

VGD-3000

CAPACITY

2000VA

3000VA

1400W

2100W

INPUT

Voltage

100V / 110V / 115V / 120V / 127V / 208V / 220V / 230V / 240V
110V-level mode: 60V to 69V under 40% load, 70V to 79V under 70% load, 80V to 144V with 100% load
220V-level mode: 120V to 139V under 40% load, 140V to 159V under 70% load, 160V to 276V with 100% load

Frequency

50Hz / 60Hz auto sensing

Phase

Single phase

Power factor

> 0.97

OUTPUT

Voltage

110V / 115V / 120V / 208V / 220V / 230V / 240V (±2% on battery)

Frequency

50Hz / 60Hz ±0.5%

Waveform

Pure sine wave

Phase

Single phase

Harmonic distortion

< 3% of T.H.D. at linear load

Efficiency

> 95% (high efficiency mode, AC to AC)

Connections

*Please refer below “Receptacle Options”. Customized receptacle can be discussed.

PROTECTION

Overload protection

UPS automatic power off if overload exceeds 106% to 120% of nominal at 30 seconds; 121% to 150% for 10 seconds

Short circuit protection

UPS output cut off immediately or protected by input fuse or circuit breaker

Tele-communication

RJ45 x2

Alarm

Buzzer beeps under backup mode, battery low,  battery charging fault, and overload

BATTERY

Type

Sealed, maintenance-free lead acid battery

Typical recharge time

4 hours to 90%

Battery quantity

12V 7Ah x6

12V 9Ah x6

Backup time (100% load)

Approximately 6 minutes

Approximately 4 minutes

Protection

Battery low cut-off without draining any current

GENERAL

Dimension (W x D x H)

225mm x 420mm x 360mm

Product weight

33.8kg

35.6kg

Display (LED/LCD)

LED – line mode (green), bypass / battery mode (yellow), fault (red)
LCD – input / output voltage and frequency, on-line mode, backup mode, battery capacity, load level

Communication interface

Standard – RS-232; *Optional – USB B-type and/or SNMP

Audible noise

< 50dBA (1m from surface)

Ambient temperature

+0 °C to +40 °C

Storage temperature

-20 °C to +50 °C

Humidity

0-95%, non-condensing
