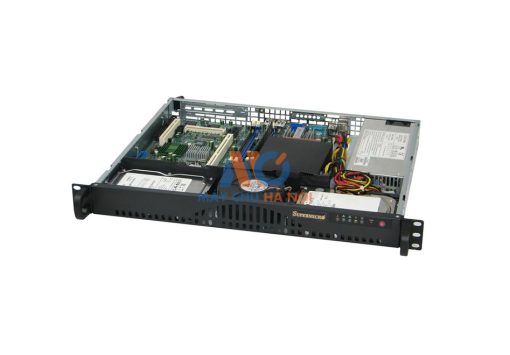

| Product SKUs | Supermicro USA Server 1U CSE-512L-260B E3-1220 v2 |
| Motherboard | X9SCL |
| Form Factor | 1U Rackmount |
| Processor | Intel® Xeon® Processor E3-1220 v2 (8M Cache, 3.1 GHz) CPU : Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & E3-1200 v2 series, 2nd and 3rd Gen Core i3 processors***, Pentium, Celeron |
| Memory | 1x 8GB DDR3 ECC 1600MHz UDIMMs Memory Capacity : 4x 240-pin DDR3 DIMM sockets. Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) DIMM Sizes : 8GB, 4GB, 2GB, 1GB |
| Storages | None HDD |
| Raid | SATA2 (3Gbps) w/ RAID 0, 1 |
| On-Board Devices | Chipset : Intel® C202 PCH chipset SATA : 6x SATA2 (3Gb/s) w/ RAID 0, 1, 5, 10 Network Controllers : Intel® 82579LM and 82574L, 2x Gigabit LAN ports Graphics : BMC integrated Matrox G200 |
| Input / Output | SATA : 6x SATA2 (3Gbps) ports LAN : 2x RJ45 Gigabit Ethernet LAN ports USB : 9x USB 2.0 ports total (2x rear + 6x via header + 1x type A) Video : 1x VGA Connector Serial Port / Header : 2x Fast UART 16550 serial port (one header and one rear port) DOM: 1x DOM (Disk on Module) power connector TPM: 1x TPM 1.2 20-pin Header |
| Expansion Slots | PCI-Express: 1x PCI-E 3.0 x8 (option) |
| Drive Bays | Internal Bay : 2x 3.5″ internal drive bays |
| Power Supply | 260W AC power supply with PFC |
