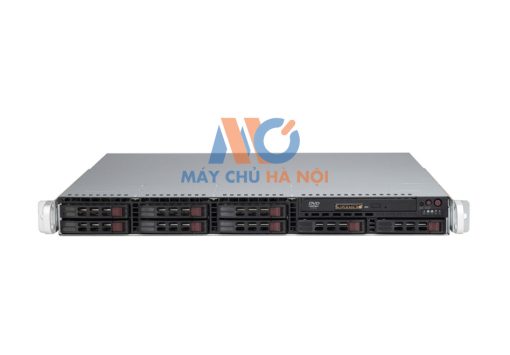

| Product SKUs | Supermicro USA Server 1U CSE-113MTQ-R400CB E5-2630 v3 |
| Motherboard | X10DRL-i |
| Form Factor | 1U Rackmount |
| Processor | 1x Intel® Xeon® Processor E5-2630 v3 (20M Cache, 2.40 GHz, 8-core, 8GT/s QPI) CPU : Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s Core/Cache : Up to 18 Cores / Up to 45MB Cache |
| Memory | 1x 8GB DDR4-2133 ECC REG Memory Capacity : 8x 288-pin DDR4 DIMM slots. Up to 512GB ECC LRDIMM, 256GB ECC RDIMM Memory Type: 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes : RDIMM: 32GB, 16GB, 8GB, 4GB / LRDIMM: 64GB, 32GB |
| Storages | None HDD |
| Raid | Support Raid (0,1,5,10) Windows/ Linux (0,1,10) |
| On-Board Devices | Chipset : Intel® C612 chipset SATA : SATA3 (6Gbps); RAID 0, 1, 5, 10 IPMI : Support for Intelligent Platform Management Interface v.2.0. IPMI 2.0 with virtual media over LAN and KVM-over-LAN support. Network Controllers : Intel® i210 Gigabit Ethernet controller Graphics : ASPEED AST2400 BMC |
| Input / Output | SATA : 4x SATA3 (6Gbps) ports LAN : 2x RJ45 Gigabit Ethernet LAN ports. 1x RJ45 Dedicated IPMI LAN port USB : 2x USB 3.0 ports (rear), 2x USB 2.0 ports (rear), 1x Type A Video : 1x VGA port Serial Port / Header: 1x Fast UART 16550 port / 1 Header DOM: DOM (Disk on Module) power connector |
| Expansion Slots | PCI-Express: 1x PCI-E 3.0 x8 (option) |
| Drive Bays | Hot-swap : 8x 2.5″ Hot-swap drive bays Peripheral Bay(s): Slim DVD-ROM drive (opt.) |
| Power Supply | 400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C |
