| MODEL | X11DPU |
| Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
| Chipset | Intel® C621 |
| Form Factor | Proprietary Ultra/WIO, 17” x 16.8” (43.18cm x 42.67cm) |
| Memory Capacity & Slots | Up to 3TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x32 Right Riser Slot, 1 PCI-E 3.0 x8 Right Riser Slot, 1 PCI-E 3.0 x40 Ultra Riser Slot, 4 PCI-E 3.0 NVMe x4 Internal Ports |
| Onboard RAID Controller | Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Networking options provided via Ultra Riser |
| Onboard VGA | 2 VGA D-Sub Connector ports, Aspeed AST2500 BMC |
| USB Ports | 3 USB 3.0 ports (2 rear via headers + 1 Type A) |
| Other Onboard I/O Devices | 2 ports SuperDOM, TPM 2.0 Header & Chip both, 1 COM Ports (1 rear), |
| Manageability | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5 |
| PC Health Monitoring | +1.8V, +12V, +3.3V, +5V, +5V standby, 5+1 Phase-switching voltage regulator, 8 -fan status, Chassis intrusion header, HT, Supports system management utility, VBAT |
| Thermal Control | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Other Features | 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, Node Manager Support, RoHS, SDDC |
| BIOS | AMI UEFI |

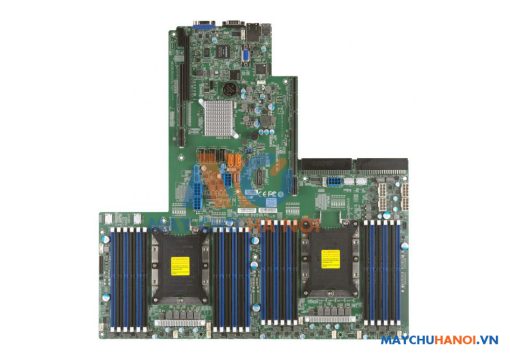

Mainboard Supermicro X11DPU
Mã: X11DPU
Bình luận: 0 | Lượt xem: 951
Mainboard Supermicro X11DPU
Liên hệ
Bảo hành: 12 tháng
Còn hàng
Mainboard Supermicro X11DPU
Mainboard Supermicro X11DPU
