| MODEL | X11DPT-B |
| Processor | Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s |
| Chipset | Intel® C621 |
| Form Factor | Proprietary, 7.62” x 18.86” (19.35cm x 47.9cm) |
| Memory Capacity & Slots | Up to 3TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots |
| Expansion Slots | 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot 1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card) 1 PCI-E 3.0 x16 SIOM LAN Networking Slot 2 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card) |
| Onboard RAID Controller | Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Onboard LAN | Single LAN with Networking options provided via SIOM module |
| Onboard VGA | 1 VGA port, Aspeed AST2500 BMC |
| USB Ports | 2 USB 3.0 ports (2 rear via headers) |
| Other Onboard I/O Devices | TPM 2.0 Header |
| Manageability | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| PC Health Monitoring | +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control |
| Thermal Control | 2x 4-pin fan headers (up to 2 fans), Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors |
| Other Features | Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS |
| BIOS | AMI UEFI |

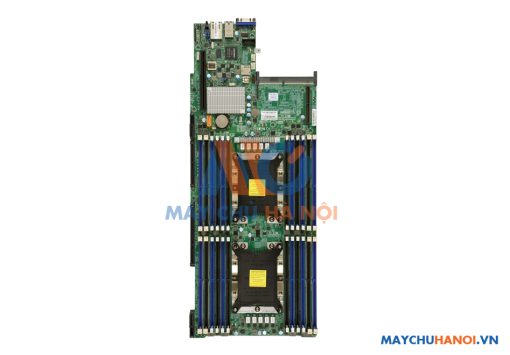

Mainboard Supermicro X11DPT-B
Mã: X11DPT-B
Bình luận: 0 | Lượt xem: 976
Mainboard Supermicro X11DPT-B
Liên hệ
Bảo hành: 12 tháng
Còn hàng
Mainboard Supermicro X11DPT-B
Mainboard Supermicro X11DPT-B
Hỏi đáp
Chưa có bình luận nào
Chưa có đánh giá nào.
