Product SKUs |
|
| MBD-X10DRL-LN4 | X10DRL-LN4 |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12″ x 10″ (30.48cm x 25.4cm) |
| Processor/Cache | |
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache |
| Note | † BIOS version 2.0 or above is required |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| System Memory | |
| Memory Capacity | Up to 1TB Registered ECC RDIMM, DDR4-2400MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices | |
| Chipset | Intel® C612 |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers | Quad LAN with Intel® i350 Gigabit Ethernet Controller Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
| Graphics | Aspeed AST2400 BMC |
| Input / Output | |
| SATA | 10 SATA3 (6Gbps) port |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 2.0 ports (2 rear + 2 headers + 1 Type A) 2 USB 3.0 ports (2 headers) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | TPM Header |
| Others | 2 SATA DOM power connectors |
| Expansion Slots | |
| PCI-E | 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 (in x8 slot) 1 PCI-E 2.0 x4 (in x8 slot) |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) PCI 2.3 ACPI 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
| Management | |
| Software | IPMI2.0, KVM with dedicated LAN, SPM, SUM, SuperDoctor® 5, Watchdog |
| Power Configurations | ACPI Power Management Power-on mode for AC power recovery |
| PC Health Monitoring | |
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID |
| Other Features | Chassis intrusion detection, Chassis intrusion header, Dual Cooling Zones, RoHS |
| Operating Environment | |
| Operating Temperature Range | 10°C – 35°C (50°F – 95°F) |
| Non-Operating Temperature Range | -40°C – 70°C (-40°F – 158°F) |
| Operating Relative Humidity Range | 8% – 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% – 95% (non-condensing) |

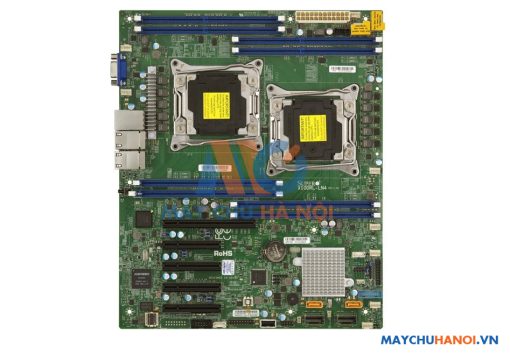

Mainboard SuperMicro X10DRL-LN4
Mã: O-MAIN019
Bình luận: 0 | Lượt xem: 1346
Mainboard SuperMicro X10DRL-LN4
Liên hệ
Còn hàng
Mainboard SuperMicro X10DRL-LN4
Mainboard SuperMicro X10DRL-LN4
