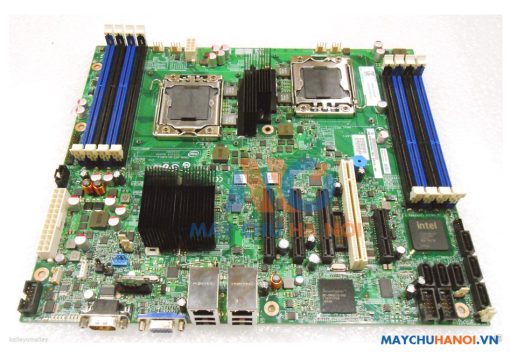

Intel Serverboard S5500BCR

General

Brand

Intel

Model

S5500BCR

Highlights

Intel S5500BCR Server MotherBoard – leveraged Dual Intel Xeon 5500 and Quad-Core/Six-Core 5600 Series. CPU Socket Type: Dual LGA 1366. North Bridge: Intel 5500.

Specifications

CPU Socket Type

Dual LGA 1366

CPU Type

Dual Intel Xeon 5500 and Quad-Core/Six-Core 5600 Series

QPI

4.8 GT/s, 5.8 GT/s, and 6.4 GT/s

North Bridge

Intel 5500

South Bridge

Intel ICH10R

Number of DDR3 Slots

8 × 240pin

DDR3 Standard

DDR3 1333

PCI Express x8

2 half-length PCI Express 2.0 x8 slot

PCI Express x4

1 half-length PCI Express 2.0 x4 slot (x8 mechanical)

PCI Slots

1 half-length PCI 32/33 5V slot

SATA

6 x SATA 3.0Gb/s

SATA RAID

Integrated SATA RAID levels 0/1/10
Optional SW RAID 5 with activation key

Onboard Video Chipset

Server Engine LLC Pilot II

LAN Chipset

Intel 82574L

LAN Speed

10/100/1000Mbps

Second LAN Chipset

Intel 82567LM

Second LAN Speed

10/100/1000Mbps

Max LAN Speed

Dual 10/100/1000Mbps

COM

1

Video Ports

D-Sub

USB 1.1/2.0

4 x USB 2.0

Form Factor

SSI CEB-leveraged

Dimensions

12″ x 10.5″

Features

1U rack: 1 low profile half-length PCI Express 2.0 x8 riser in slot 6
