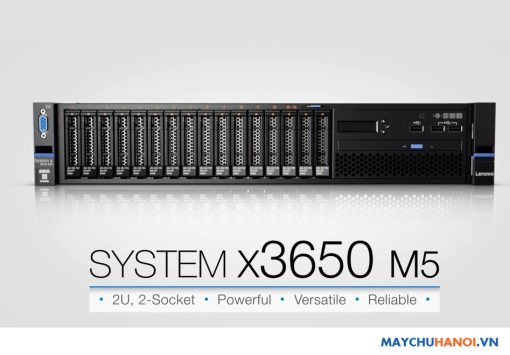

IBM LENOVO X3650 M5 SFF E5-2620v3

MODEL

IBM X3650 M5 ( CPU E5-2620 v3 )

Chipset

Intel® C612 Chipset

Max Processor

2

PROCESSOR

1 x Intel® Xeon® Processor E5-2620v3 2.4GHz 15MB QPI 8.0 GT/s LGA 2011 – 3
Up to two Intel® Xeon® processors E5-2600 v3 series with up to 18 cores each/Up to 45 MB per processor

MEMORY

1 x  8GB PC4-19200 ECC 2400 MHz

HDD

1x300GB 10K 6Gbps SAS 2.5″
Up to 24 front & 2 rear 2.5-inch HDDs/SSDs; or up to 12 3.5-inch & 2 rear 3.5-inch HDDs + 2 rear 2.5-inch HDDs/SSDs

RAID Supports

Onboard 6 Gb SATA: no RAID support

12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades.

12 Gb SAS/SATA non-RAID: N2215 HBA

Network Controller

Four integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719)

Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors.

Systems Management

UEFI, IBM Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, light path diagnostics, Automatic Server Restart, IBM ToolsCenter, IBM Systems Director and Active Energy Manager. Optional IBM Integrated Management Module Advanced Upgrade software feature for remote presence.

Expansion Slots

Up to nine slots. Slots 0, 4, and 5 are the standard slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:

Slot 0: PCIe 3.0 x8 (dedicated for an internal RAID controller)

Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide)

Slot 2: PCIe 3.0 x8; full-height, full-length (not present if the slot 1 is PCIe x16)

Slot 3: PCIe 3.0 x8 or ML2; full-height, half-length

Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)

Slot 5: PCIe 3.0 x16; low profile (vertical slot on system planar)

Slot 6: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide)

Slot 7: PCIe 3.0 x8; full-height, full-length (not present if the slot 6 is PCIe x16)

Slot 8: PCIe 3.0 x8; full-height, half-length

Slots 5, 6, 7, and 8 require the second processor to be installed.

Graphics

Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors.

POWER

550W Redundant Hot-Swap High Efficiency Platinum AC power supplies

Form Factor

2U Rackmount

OS Supports

Support Microsoft Windows Server 2012 R2, 2012 and 2008 R2, Red Hat Enterprise Linux 6 and 7, SUSE Linux Enterprise Server 11, VMware vSphere (ESXi) 5.1 and 5.5.
