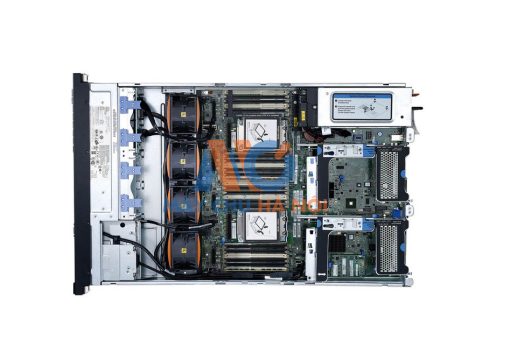

IBM SYSTEM X3650 M4 – 1CPU E5-2620V2

Mã: X3650 M4 E5-2620 v2 Bình luận: 0 | Lượt xem: 1990

Form factor/height Rack 2U Processor 1 x Intel® Xeon® 6-Core Processor E5-2620v2, 2.1GHz 15M 7.2GT/s QPI Up to two 12-core Intel Xeon E5-2600 v2 series processors Cache (max) 30 MB per processor Memory 1 x 8GB PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Up to 768 GB via 24 slots (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM) Media bays […]

Bảo hành: 36 tháng

Còn hàng

IBM SYSTEM X3650 M4 – 1CPU E5-2620V2

Description

Form factor/height	Rack 2U
Processor	1 x Intel® Xeon® 6-Core Processor E5-2620v2, 2.1GHz 15M 7.2GT/s QPI Up to two 12-core Intel Xeon E5-2600 v2 series processors
Cache (max)	30 MB per processor
Memory	1 x 8GB PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM Up to 768 GB via 24 slots (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM)
Media bays	Up to two 5.25-inch half-high bays, support for DVD-ROM or multiburner, half-high SATA DVD-ROM standard in standard models
Disk bays (total)	Sixteen 2.5-inch or six 3.5-inch HDDs or thirty-two 1.8-inch SSDs
RAID support	ServeRAID M5110e RAID on motherboard,integrated 6 Gbps hardware RAID-0, -1, -10 Integrated 6 Gbps or new optional 12 Gbps* hardware RAID-0, -1, -10 with optional RAID-5, -50, -6, -60.
Power supply	1 x IBM 550W Redundant Power Supply Unit 1/2 redundant 550 W AC, 750 W AC, 900 W AC, or 750 W DC (model dependent)
Hot-swap components	Power supplies, fan modules and hard disk drives
Network interface	Four integrated Gigabit Ethernet 4 x 1 GbE (std.), 2 x 10 GbE Embedded Adapter (slotless opt.)/TPM
Expansion slots	4 – 6 PCIe ports or 4 PCI-X (CTO) or 2 double-width PCIe (for GPU)
USB ports	2 front/4 back/2 internal
Storage	Non HDD Up to 25.6 TB (2.5-inch model) or 24 TB (3.5-inch model) SAS/SATA
Energy efficiency	80 PLUS Platinum and ENERGY STAR (model dependent) Compliance
Systems management	IMM2 with optional FoD remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director Active Energy Manager
Operating systems supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
