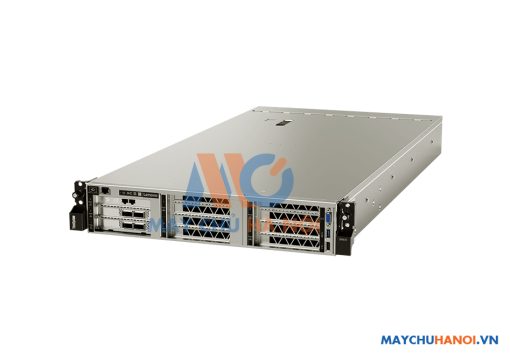

ThinkSystem SR670

So sánh Gửi cho bạn bè
Mã sản phẩm : SR670
Bảo hành : 36 tháng
Giá bán : Liên hệ

Số lượng

Mua hàng

Miễn phí vận chuyển trong khu vực nội thành Hà Nội

Gọi ngay để được tư vấn miễn phí

  • Hỗ trợ kỹ thuật

    0904 44 38 14

  • Hỗ trợ kinh doanh

    0979 83 84 84

ComponentsSpecification
Machine types 7Y36 - 1 year warranty
7Y37 - 3 year warranty
7Y38 - No warranty
Form factor 2U rack.
Processor Up to two Intel Xeon Processor Scalable Family of processors. The SR670 supports Gold level processors (formerly codename "Skylake") up to 16 cores and TDP ratings up to 150W. Additional processor support up to TDP 205W is available via Special Bid. Two Intel Ultra Path Interconnect (UPI) links at 10.4 GT/s each.
Chipset Intel C624 "Lewisburg" chipset
Memory 24 DIMM sockets (12 DIMMs per processor) supporting Lenovo TruDDR4 DIMMs at up to 2666 MHz. RDIMMs are supported. LRDIMMs and 3DS RDIMMs are currently not supported.
Memory maximums With RDIMMs: Up to 768 GB with 24x 32 GB RDIMMs and two processors.
Memory protection ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs), memory mirroring, and memory sparing.
Disk drive bays Eight 2.5-inch hot-swap drive bays supporting SATA HDDs and SSDs. M.2 slot for one or two M.2 drives.
Maximum internal storage Up to 16 TB using 8x 2TB SATA HDDs, or up to 7.68 TB using 8x 960 GB SATA SSDs. Mix of SSDs/HDDs supported.
Storage controller
  • Onboard 6 Gb SATA using embedded Intel RSTe software RAID, supporting RAID 0, 1, 10, and 5
  • No support currently for RAID adapters or HBAs
Optical drive bays No internal optical drive.
Tape drive bays No internal backup drive.
Network interfaces None standard; add networking via a PCIe adapter. Dedicated Ethernet port for systems management (connected to the XClarity Controller) is standard.
PCI Expansion slots

Seven front-accessible PCIe slots (slots are located at the front of the server):

  • Slot 1: PCIe 3.0 x16 (full-height, half-length)
  • Slot 2: PCIe 3.0 x16 (full-height, half-length)
  • Slot 3: PCIe 3.0 x4 (full-height, half-length)
  • Slot 4: PCIe 3.0 x16 for a GPU (full-height, full-length, double-width)
  • Slot 5: PCIe 3.0 x16 for a GPU (full-height, full-length, double-width)
  • Slot 6: PCIe 3.0 x16 for a GPU (full-height, full-length, double-width)
  • Slot 7: PCIe 3.0 x16 for a GPU (full-height, full-length, double-width)
Ports

Front: One USB 2.0 port, one USB 3.0 port, one VGA video port, one RJ45 XClarity Controller (XCC) systems management port.

Rear: One DB9 serial port. The serial port can be redirected and accessed remotely via IPMI or SSH via XCC.

Cooling Six N+1 redundant simple-swap 60 mm dual-rotor fans (all six standard). One fan integrated in each power supply.
Power supply Two 2000W hot-swap AC power supplies with 80 PLUS Platinum certification. Power supplies are redundant in most configurations. Requires 200-240 V AC power (110 V AC not supported).
Video G200e graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-swap parts Drives and power supplies.
Systems management XClarity Controller embedded systems management. Support for Lenovo intelligent Computing Orchestration (LiCO), Lenovo XClarity Essentials (BoMC, UpdateExpress, OneCLI), Lenovo XClarity Provisioning Manager. Redfish API Spec v1.0.2 compliant. Optional XClarity Controller Advanced or Enterprise with software license upgrade to enable remote control functions. XClarity Administrator and XClarity Energy Manager currently not supported.
Security features Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0 . In China only, optional Nationz TPM 2.0 plug-in module.
Operating systems supported Red Hat Enterprise Linux. See the Operating system support section for specifics.
Limited warranty Three-year or one-year or no warranty (model dependent). Customer-replaceable unit (CRU) and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions

Height: 87 mm (3.4 in.), width (top cover): 438 mm (17.3 in.), width (EIA flange): 488 mm (19.3 in.), depth (EIA flange to rear): 870 mm (34.3 in.), depth (overall): 933 mm (36.8 in.)

Weight 32 kg (71.9 lb) depending on the specific configuration
