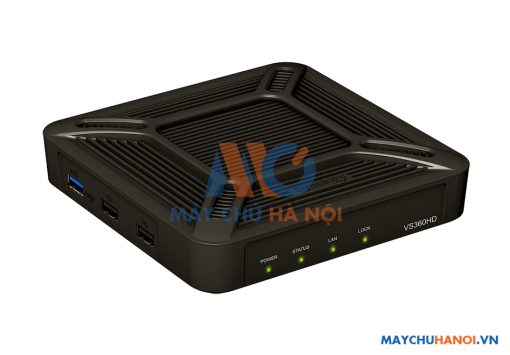

Surveillance Station VS360HD

Hardware Specifications Video Outputs Video Output HDMI X 2 Supported Video Resolution 1080p Audio Output 3.5 mm Stereo Audio Jack X 1 USB 2.0 Port 4 Appearance Size 166 mm X 71 mm X 224 mm Weight 0.87 kg Others LAN Number Gigabit X 1 Power Supply Unit / Adapter 24W AC Input Power Voltage 100V to 240V AC Power Frequency 50/60 HZ, Single Phase Power Consumption 14.4W (24ch full-load) 10W (Power on Idle) Environment Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -10°C to 70°C (15°F to 155°F) Relative Humidity 5% to 95% RH Maximum Operating Altitude 6500 feet Certification FCC Class B CE Class B Warranty 3 Years Notes Both HDMI outputs receive identical video feeds: the first combines these feeds with the management interface while the second is for video only. Software Specifications Max Channel Number 24 Total FPS (H.264) 240 FPS @ 720p (1280×800) 100 FPS @ 1080p (1920×1080) 40 FPS @ 3M (2048×1536) 40 FPS @ 5M (2591×1944) Video Compression Format MJPEG MPEG-4 H.264 Audio Codec PCM ADPCM G711 G726 AMR AAC Live View / Recording Playback Snapshot Support eMap Support PTZ Control / Patrol Log Viewer Environment & Packaging Environment RoHS Compliant Packaging Content Main Unit X 1 Quick Installation Guide X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1
