Key Features
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 6x PCI-E 3.0 x8 (3 slots occupied by IT Mode disk controllers, LSI 3008)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 72x 3.5″ Hot-swap SAS3/SATA3 drive bays; 2x 2.5″ Hot-swap drive bays (rear)
6. SAS3 via 3x LSI 3008 controller; IT mode
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 7x 80mm middle cooling fans
9. 2000W High efficiency (96%) Redundant PSU; Titanium Level
Specifications
Product SKUs |
|

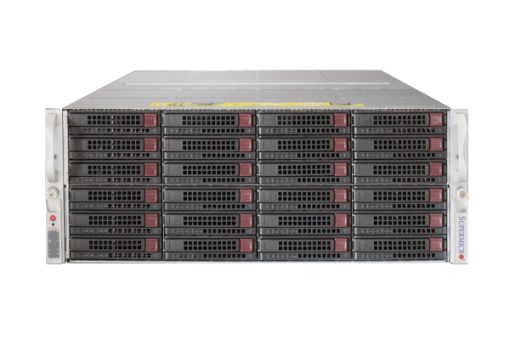

SSG-6048R-E1CR72L | SuperServer 6048R-E1CR72L (Black) |
Motherboard |
|
Super X10DRH-iT | |
Processor/Cache |
|
CPU | Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
System Bus | QPI up to 9.6 GT/s |
Note | * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
Memory Capacity | 16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM |
Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB |
Memory Voltage | 1.2 V |
Error Detection | Corrects single-bit errors |
On-Board Devices |
|
Chipset | Intel® C612 chipset |
SAS | SAS3 (12Gbps) via 3x LSI 3008 (AOC) IT mode firmware |
SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
Network Controllers | Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) |
Graphics | ASPEED AST2400 |
Input / Output |
|
Serial ATA | 6x SATA3 (6Gbps) ports |
LAN | 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
USB | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A |
VGA | 1x VGA port |
Serial Port / Header | 1x Fast UART 16550 port / 1 Header |
System BIOS |
|
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Chassis |
|
Form Factor | 4U Rackmount |
Model | CSE-847DTS-R2K04LPB |
Dimensions and Weight |
|
Width | 17.2″ (437mm) |
Height | 7″ (178mm) |
Depth | 35″ (889mm) |
Weight | Net Weight: 67 lbs (30.4 kg) Gross Weight: 104 lbs (47.2 kg) |
Available Colors | Black |
Front Panel |
|
Buttons | Power On/Off button System Reset button |
LEDs | Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
PCI-Express | 1 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots 3 slots occupied by IT Mode disk controller, LSI 3008 |
Drive Bays |
|
Hot-swap | 72x 3.5″ Hot-swap SAS3/SATA3 drive bays with SES2 Double-sided storage 2x 2.5″ Hot-swap drive bays (rear) |
Fixed | 2x 2.5″ Fixed bays |
Backplane |
|
SAS3/SATA3 single expander per backplane | |
System Cooling |
|
Fans | 7x 92mm hot-swap cooling fans |
Power Supply with Digital Switching Control |
|
2000W Titanium Level (96%) High-efficiency Redundant Power Supplies | |
Total Output Power | 1000W/1800W/1980W/2000W |
AC Input | 100-127 V, 50-60 Hz 200-220 V, 50-60 Hz 220-230 V, 50-60 Hz 230-240 V, 50-60 Hz |
+12V | Max: 83.3A & Min: 0A (100Vac-127Vac) Max: 150A & Min: 0A (200Vac-220Vac) Max: 165A & Min: 0A (220Vac-230Vac) Max: 166.7A & Min: 0A (230Vac-240Vac) |
5V SB | Max: 1A / Min: 0A |
Certification | Titanium Level |
Operating Environment / Compliance |
|
RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Standard Parts List |
|||
Part Number | Qty | Description | |
Motherboard / Chassis | MBD-X10DRH-iT | 1 | Super X10DRH-iT Motherboard |
CSE-847DTS-R2K04LPB | 1 | 4U Chassis | |
Add-on Card / Module | AOC-S3008L-L8E-P | 3 | |
Backplane | BPN-SAS3-847DF | 1 | Front mid-plane (847DF) for SAS3 12Gbps 847D project, support 48x 3.5″ SATA3/SAS2/SAS3 HDDs by using 24x dual-HDD tray,,RoHS/REACH |
Backplane | BPN-SAS3-847DE48D | 1 | SAS3 12Gbps front expander board for SC847D, support 48x SAS/SATA HDD, support direct connection (no cascade) type configurations,RoHS/REACH |
Backplane | BPN-SAS3-847DR | 1 | Rear mid-plane (847DR) for SAS3 12Gbps 847D server project, support 24x 3.5 |
Backplane | BPN-SAS3-847DE24D | 1 | SAS3 12Gbps rear expander board for SC847D, support 24x SAS/SATA HDD, support direct connection (no cascade) type configurations,RoHS/REACH |
Cable 1 | CBL-SAST-0531 | 4 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, HF,RoHS/REACH,PBF |
Cable 2 | CBL-SAST-0532 | 2 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
Heatsink / Retention | SNK-P0048PS | 1 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
Heatsink / Retention | SNK-P0048AP4 | 1 | 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32 |
Power Supply | PWS-2K04A-1R | 1 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH |
Optional Parts List |
|||
Part Number | Qty | Description | |
Peripheral Drives | MCP-220-84704-0N | – | Rear 2 X 2.5″ HDD kit (cables & backplane included) |
