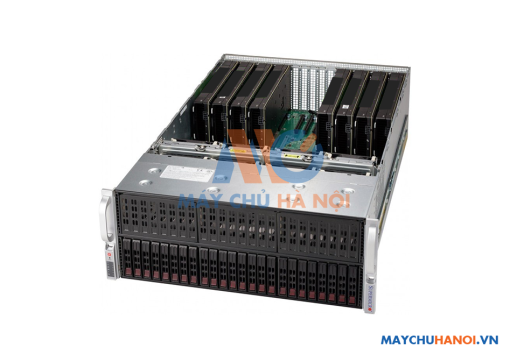

Máy chủ SUPERMICRO SYS-4028GR-TR (SuperServer 4U)

Mã: SSR4U001 Bình luận: 0 | Lượt xem: 2066

Product SKUs SYS-4028GR-TR SuperServer 4028GR-TR (Black) Motherboard Super X10DRG-O+-CPU Processor/Cache CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011) Cores / Cache Up to 22 Cores† / Up to 55MB† Cache System Bus QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required Note […]

Bảo hành: 24 tháng

Còn hàng

Máy chủ SUPERMICRO SYS-4028GR-TR (SuperServer 4U)

Description

Product SKUs

SYS-4028GR-TR	SuperServer 4028GR-TR (Black)


Motherboard

Super X10DRG-O+-CPU


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores† / Up to 55MB† Cache
System Bus	QPI up to 9.6 GT/s
Note	† BIOS version 2.0 or above is required
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

GPU/Xeon Phi Support

NVIDIA® Tesla® K10/K40/K80/M40/M60/Xeon Phi


System Memory

Memory Capacity	24x 288-pin DDR4 DIMM slots Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM
Memory Type	2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Gigabit Ethernet Ports with Intel® i350 Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	ASPEED AST2400 BMC


Input / Output

SATA	10 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	4 USB 3.0 ports
Video	1 VGA Connector
Serial Port	1 Serial header


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 USB Keyboard support SMBIOS 2.7.1 UEFI

Chassis

Form Factor	4U Rackmountable Rackmount Kit (MCP-290-00057-0N)
Model	CSE-418GTS-R3200B


Dimensions

Height	7.0″ (178mm)
Width	17.2″ (437mm)
Depth	29″ (737mm)
Weight	Net Weight: 65.5 lbs (29.7 kg) Gross Weight: 100 lbs (45.3 kg)
Available Colors	Black


Drive Bays

Hot-swap	24 Hot-swap 2.5″ hard drive bays


Expansion Slots

PCI-Express	8 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x8 (in x16) slots 1 PCI-E 2.0 x4 (in x16) slot


Backplane

SAS/SATA HDD Backplane


System Cooling

Fans	8 Hot-swap 92mm cooling fans
Shrouds	1 Air Shroud (MCP-310-41808-0B)


Power Supply

1600W 1U Redundant Power Supplies with PMBus
Total Output Power	1000W: 100 – 127Vac 1600W: 200 – 240Vac
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-127Vac / 12.9A Max / 50-60Hz 200-240Vac / 9.5A Max / 50-60Hz
+12V	Max: 82A / Min: 0.1A (100-127Vac) Max: 132A / Min: 0.1A (200-240Vac)
12V SB	Max: 2A / Min: 0.2A
Output Type	25 Pairs Gold Finger Connector
Certification	Platinum Level [ Test Report ]


PC Health Monitoring

CPU	Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN	4-pin fan headers with tachometer status monitoring Low noise fan speed control mode
Temperature	Monitoring for CPU and system environment Thermal Control for 8 fan connectors
Other Features	Chassis intrusion detection


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
