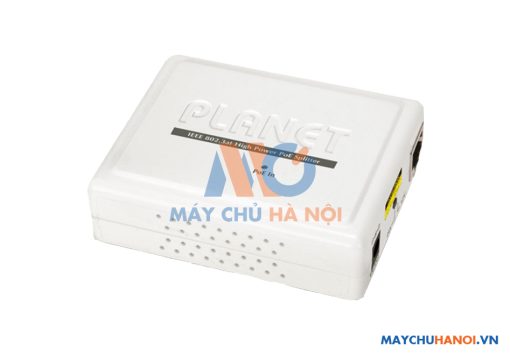

IEEE 802.3at Gigabit Power over Ethernet Plus Splitter POE-162S

Interface

    2 RJ45 interfaces

    – 1-port PoE Power + Data input

    – 1-port Data output

    1 DC out plug connector

PoE

    Complies with IEEE 802.3at Power over Ethernet Plus PD

    Splits the 52~56V DC power over RJ45 Ethernet cable into 12V/24V DC output

    Up to 1 non-IEEE 802.3at device powered

    Auto detects IEEE 802.3at PoE compliant device, protects devices from being damaged by incorrect installation

    Adjustable two different output voltage options (12V, 2A; 24V, 1A) to fit various devices

    Distance up to 100 meters

    IEEE 802.3af PoE injector devices compatible

Hardware

    Plastic case

    12V/24V DIP switch

    LED power input indicators

Standard Compliance

    IEEE 802.3 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-T

    IEEE 802.3at Power over Ethernet Plus standard

    FCC Part 15 Class A, CE
