MODEL |

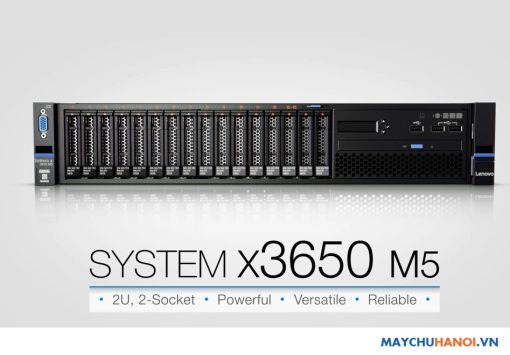

IBM X3650 M5 ( E5-2683 v3 ) |
Chipset |
Intel® C612 Chipset |
Max Processor |
2 |
PROCESSOR |
1 x Intel® Xeon® Processor E5-2683 v3 |
MEMORY |
2 x 16GB PC4-19200 ECC 2400 MHz |
HDD |
3xIBM 300GB 10K 6Gbps SAS 2.5″ |
RAID Supports |
Onboard 6 Gb SATA: no RAID support 12 Gb SAS/SATA RAID: RAID 0, 1, 10 with M1215 or M5210. Optional upgrade to RAID 5, 50 is available for M1215. Optional upgrade to RAID 5, 50 is available for M5210 (zero-cache; 1 GB non-backed cache; 1 GB, 2 GB or 4 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with memory cache upgrades. 12 Gb SAS/SATA non-RAID: N2215 HBA |
Network Controller |
Four integrated RJ-45 Gigabit Ethernet 1000BASE-T ports (BCM5719) |
Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors or quad-port GbE cards with RJ-45 connectors. |
|
Systems Management |
UEFI, IBM Integrated Management Module II (IMM2.1) based on Renesas SH7758, Predictive Failure Analysis, light path diagnostics, Automatic Server Restart, IBM ToolsCenter, IBM Systems Director and Active Energy Manager. Optional IBM Integrated Management Module Advanced Upgrade software feature for remote presence. |
Expansion Slots |
Up to nine slots. Slots 0, 4, and 5 are the standard slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows: Slot 0: PCIe 3.0 x8 (dedicated for an internal RAID controller) Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide) Slot 2: PCIe 3.0 x8; full-height, full-length (not present if the slot 1 is PCIe x16) Slot 3: PCIe 3.0 x8 or ML2; full-height, half-length Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar) Slot 5: PCIe 3.0 x16; low profile (vertical slot on system planar) Slot 6: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, full-length (PCIe x16 slot is double-wide) Slot 7: PCIe 3.0 x8; full-height, full-length (not present if the slot 6 is PCIe x16) Slot 8: PCIe 3.0 x8; full-height, half-length Slots 5, 6, 7, and 8 require the second processor to be installed. |
Graphics |
Matrox G200eR2 with 16 MB memory integrated into the IMM2.1. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors. |
POWER |
550W Redundant Hot-Swap High Efficiency Platinum AC power supplies |
Form Factor |
2U Rackmount |
OS Supports |
Support Microsoft Windows Server 2012 R2, 2012 and 2008 R2, Red Hat Enterprise Linux 6 and 7, SUSE Linux Enterprise Server 11, VMware vSphere (ESXi) 5.1 and 5.5.
|
IBM LENOVO X3650 M5 E5-2683v3 300GB
Mã: X3650 M5 E5-2683v3
Bình luận: 0 | Lượt xem: 1113
CPU: Intel® Xeon® Processor E5-2683 v3
Ram: 2x16GB PC4-19200 ECC 2400 MHz
HDD: 3xIBM 300GB 10K 6Gbps SAS 2.5″
PSU: 550W High Efficiency Platinum
101.000.000 ₫
Bảo hành: 36 tháng
Còn hàng
CPU: Intel® Xeon® Processor E5-2683 v3
Ram: 2x16GB PC4-19200 ECC 2400 MHz
HDD: 3xIBM 300GB 10K 6Gbps SAS 2.5″
PSU: 550W High Efficiency Platinum
IBM LENOVO X3650 M5 E5-2683v3 300GB
