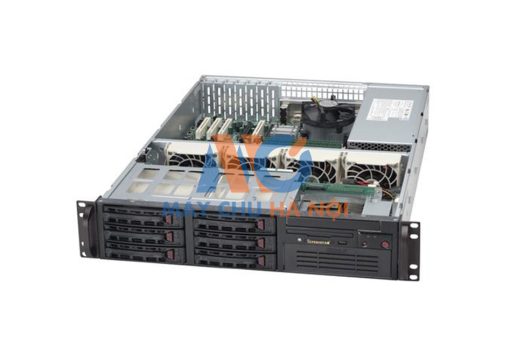

Thông tin sản phẩm Máy chủ Supermicro USA Server 2U CSE-822T-400LPB E5-2620 v2
| Product SKUs | Supermicro USA Server 2U CSE-822T-400LPB E5-2620 v2 |
| Motherboard | X9DRL-iF |
| Form Factor | 2U Rackmount |
| Processor | 1x Intel® Xeon® Processor E5-2620 v2 (15M Cache, 2.10 GHz, 6-core, 7.2GT/s QPI) CPU : Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family† Cache : Up to 30MB System Bus: QPI up to 8 GT/s |
| Memory | 1x 8GB DDR3-1600 ECC REG Memory Capacity : 8x 240-pin DDR3 DIMM slots. Up to 512GB DDR3 ECC LRDIMM, Up to 256GB DDR3 ECC RDIMM, Up to 64GB DDR3 ECC/non-ECC UDIMM Memory Type: 1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes : RDIMM: 32GB, 16GB, 8GB, 4GB / LRDIMM: 64GB |
| Storages | None HDD |
| Raid | Support Raid (0,1,5,10) Windows/ Linux (0,1,10) |
| On-Board Devices | Chipset : Intel® C602 chipset AHCI SATA: SATA 2.0 3Gbps with RAID 0, 1, 5, 10 / SATA 3.0 6Gbps with RAID 0, 1, 5, 10 SCU SATA: SATA 2.0 3Gbps with RAID 0, 1, 5, 10 IPMI : Support for Intelligent Platform Management Interface v.2.0. IPMI 2.0 with virtual media over LAN and KVM-over-LAN support. Network Controllers : Intel® 82574L Gigabit Ethernet/ 1x Realtek RTL8201N PHY (dedicated IPMI) Graphics : Matrox G200eW |
| Input / Output | SATA : 8x SATA2 and 2x SATA3 ports LAN : 2x RJ45 Gigabit Ethernet LAN ports. 1x RJ45 Dedicated IPMI LAN port USB : 9 USB 2.0 ports total (4 rear + 4 via header + 1 Type A) Video : 1x VGA port Serial Port / Header: 2 Fast UART 16550 port / 1 Header DOM: 1 DOM (Disk on Module) power connector TPM: 1 TPM 1.2 20-pin Header |
| Expansion Slots | PCI-Express: 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8), 1 PCI-E 2.0 x1, 1 PCI |
| Drive Bays | Hot-swap : 6x 3.5″ Hot-swap drive bays Peripheral Bay(s): 1x 5.25″ full-height peripheral bay |
| Power Supply | 400W AC high-efficiency power supply w/ PFC |
