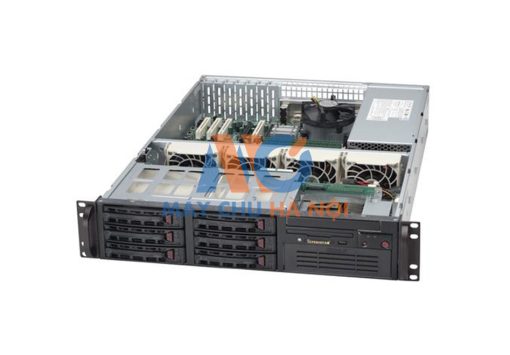

Thông tin sản phẩm Máy chủ Supermicro USA Server 2U CSE-822T-400LPB E3-1230 v3
| Product SKUs | Supermicro USA Server 2U CSE-822T-400LPB E3-1230 v3 |
| Motherboard | X10SLL-F |
| Form Factor | 2U Rackmount |
| Processor | Intel® Xeon® Processor E3-1230 v3 (8M Cache, 3.3 GHz) CPU : Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors |
| Memory | 1x 8GB DDR3 ECC 1600MHz UDIMMs Memory Capacity : 4x 240-pin DDR3 DIMM sockets. Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) DIMM Sizes : 8GB, 4GB, 2GB, 1GB |
| Storages | None HDD |
| Raid | Support Raid (0,1,5,10) Windows/Linux(0,1,10) |
| On-Board Devices | Chipset : Intel® C222 Express PCH SATA : SATA3 (6Gbps) w/ RAID 0, 1. SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 IPMI : Support for Intelligent Platform Management Interface v.2.0. IPMI 2.0 with virtual media over LAN and KVM-over-LAN support. Network Controllers : Intel® i217LM + Intel® i210AT Controllers Graphics : BMC integrated Aspeed AST2400 |
| Input / Output | SATA : 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports LAN : 2x RJ45 Gigabit Ethernet LAN ports. 1x RJ45 Dedicated IPMI LAN port USB : 2x USB 3.0 ports (1 Type-A, 1 via header), 6x USB 2.0 ports (4 rear, 2 via header) Video : 1x VGA Connector Serial Port : 2x COM ports (1 rear, 1 header) DOM: SATA DOM (Disk on Module) power connector support |
| Expansion Slots | PCI-Express: 1x PCI-E 3.0 x8 (in x16), 1x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slots |
| Drive Bays | Hot-swap : 6x 3.5″ Hot-swap drive bays Peripheral Bay(s): 1x 5.25″ full-height peripheral bay |
| Power Supply | 400W AC high-efficiency power supply w/ PFC |
