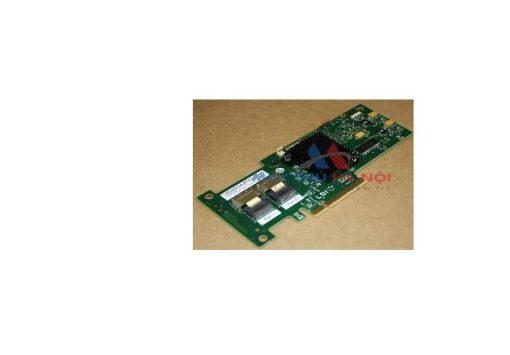

Card Raid IBM ServeRAID M1015

Thông số kỹ thuật chi tiết Card Raid IBM ServeRAID M1015

• Processor:

  LSI SAS2008

• Cache:

  None

• Interface:

  SAS 6 Gbps

• Host bus interface:

  PCIe 2.0 x8

• Drives supported:

  Up to 32 SAS and/or SATA drives

• Supported RAID Levels:

  RAID-0, -10 (optional RAID-5, -50)

• Management:

  MegaRAID Storage Manager,MegaCLI,WebBIOS and Preboot CLI

• Supported servers:

  Visit the IBM ServerProven page for the latest supported servers at ibm.com/servers/eserver/serverproven/compat/us/

• Operating systems:

  Red Hat Enterprise Linux®,SuSE Linux ES,Microsoft®Windows®2003 (32- and 64-bit),Microsoft Windows 2008,Microsoft Windows PE (32- and 64-bit)

• Form factor:

  PCIe low profile
