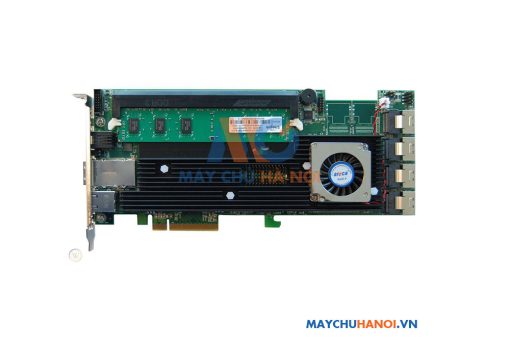

Card raid ARECA (ARC-1882IX-16)

Thông số kỹ thuật chi tiết Card raid ARECA (ARC-1882IX-16)

• Brand:

  areca

• Model:

  ARC-1882IX-16

• Type:

  SATA / SAS

• External Connectors:

  4 x SAS

• Internal Connectors:

  16 x SAS

• Interface:

  PCI-Express 3.0 x8

• Cache Memory:

  1GB of ECC DDR3-1333 single rank registered SDRAM

• RAID:

  RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD

• Operating Systems Supported:

  Windows 7/2008/Vista/XP/2003
  Linux
  FreeBSD
  VMware
  Solaris 10/11 x86/x86_64
  Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x

• Dimensions:

  9.84" x 3.87"

• Features:

  Dual Core RAID-on-Chip (ROC) 800 MHz processor

  One 240-pin DIMM socket for DDR3-1333 ECC single rank registered SDRAM module using x8 or x16 chip organization, upgrade from 1GB (default) to 4GB

  Write-through or write-back cache support

  Support up to 16 internal or 4 external 6Gb/s SAS ports

  Multi-adapter support for large storage requirements

  BIOS boot support for greater fault tolerance

  BIOS PnP (plug and play) and BBS (BIOS boot specification) support

  Support EFI BIOS for Mac Pro

  NVRAM for RAID event & transaction log

  Redundant flash image for controller availability

  Battery Backup Module (BBM) ready (Option)

  RoHS compliant
