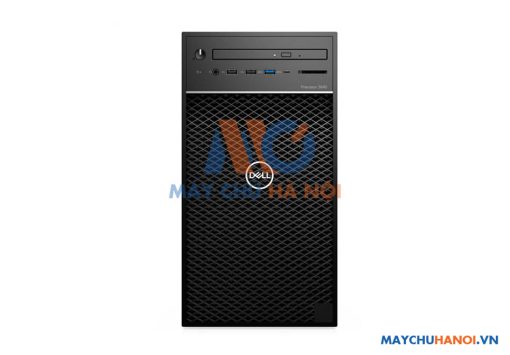

| Features & Technical Specifications PRECISION 3640 TOWER | |
| Feature | Precision 3640 Tower Technical Specifications |
| Processor Options1 |
10th Generation Intel® Core™ i9-10900K, 20 MB Cache, 10 Core, 3.7 GHz to 5.3 GHz – DDR4 2933 10th Generation Intel® Core™ i9-10900, 20 MB Cache, 10 Core, 2.8 GHz to 5.2 GHz – DDR4 2933 10th Generation Intel® Core™ i7-10700K, 16 MB Cache, 8 Core, 3.8 GHz to 5.0 GHz – DDR4 2933 10th Generation Intel® Core™ i7-10700, 16 MB Cache, 8 Core, 2.9 GHz to 4.7 GHz – DDR4 2933 10th Generation Intel® Core™ i5-10600K, 12 MB Cache, 6 Core, 4.1 GHz to 4.8 GHz – DDR4 2666 10th Generation Intel® Core™ i5-10600, 12 MB Cache, 6 Core, 3.3 GHz to 4.8 GHz – DDR4 2666 10th Generation Intel® Core™ i5-10500, 12 MB Cache, 6 Core, 3.1 GHz to 4.5 GHz – DDR4 2666 10th Generation Intel® Core™ i3-10100, 6 MB Cache, 4 Core, 3.6 GHz to 4.3 GHz – DDR4 2666 10th Generation Intel® Xeon® W-1290P, 20 MB Cache, 10 Core, 3.7 GHz to 5.3 GHz – DDR4 2666 10th Generation Intel® Xeon® W-1290, 20 MB Cache, 10 Core, 3.2 GHz to 5.2 GHz – DDR4 2666 10th Generation Intel® Xeon® W-1270P, 16 MB Cache, 8 Core, 3.8 GHz to 5.1 GHz, DDR4 2666 10th Generation Intel® Xeon® W-1270, 16 MB Cache, 8 Core, 3.4 GHz to 4.9 GHz – DDR4 2666 10th Generation Intel® Xeon® W-1250P, 12 MB Cache, 6 Core, 4.1 GHz to 4.8 GHz – DDR4 2666 10th Generation Intel® Xeon® W-1250, 12 MB Cache, 6 Core, 3.3 GHz to 4.7 GHz – DDR4 2666 |
| Operating System Options |
Windows® 10 Professional (64 bit) Windows® 10 Pro for Workstations (64 bit) w/ Intel Xeon® processors Windows® 10 Home (64 bit) Red Hat® Enterprise Linux® 8.2 (coming soon) Ubuntu® 18.04 SP1 NeoKylin 7.0 (China only) |
| Chipset | Intel® W480 chipset |
| Memory Options3 |
4 Dimm Slots; Up to 128GB 2666MHz or 2933MHz (2933MHz requires Intel Core i7 or above) Non-ECC & ECC DDR4 Memory |
| Graphics Options3 |
One PCI Express® x16 Gen 3 slot supporting graphics card up to 300W (Total power available for discrete graphics cards). (Some cards are available in Dual Config as well) High End cards: NVIDIA Quadro® RTX5000 AMD Radeon Pro™ W5700 Mid-range 3D cards: NVIDIA Quadro® RTX4000 NVIDIA Quadro® P2200 AMD Radeon Pro™ W5500 Entry 3D cards:(all single or dual) NVIDIA Quadro® P1000 AMD Radeon Pro™ WX3200 NVIDIA Quadro® P620 NVIDIA Quadro® P400 |
| Storage Options4 |
Support for up to (2) M.2 PCIe SSD on motherboard slot and up to (3) 3.5” SATA® or (4) 2.5” SATA®. Support for Intel® Ready Mode™ technology Support for up to (1) additional PCIe SSD on Dell Precision Ultra-Speed drive (x8) with active cooling M.2 PCIe NVMe™ SSD up to (2) 2TB (max 4TB) on M/B Up to (1) 2TB on Dell Precision Ultra-Speed drive SATA® 2.5” 7200 RPM Up to (4) 2TB 7200 RPM SATA® 3.5” Up to (3) 8TB 7200 RPM Self Encrypting Drives 512GB M.2 NVMe™ SSD Class 40 SED 256 GB M.2 NVMe™ Class 40 SED 1 TB M.2 NVMe™ Class 40 SED 500 GB 2.5-inch OPAL SATA SED FIPS HDD |
| Storage Controller | Integrated: Intel® Rapid Storage Controller 12.0 supporting SATA 6Gb/s and host based RAID 0/1/5/10 |
| Speakers |
Internal Speaker; Optional Dell 2.0 stereo speaker systems available and Dell sound bar for select flat-panel displays |
| Communications |
Integrated: Intel® Ethernet Connection I219-LM 10/100/1000 Optional: Intel 10/100/1000 PCIe Gigabit Networking card Aquantia® AQtion™ AQN-108 5/2.5 GbE NIC Adapter Optional: WLAN on M.2 2230 port with up to Wi-Fi® 6 (802.11ax) wireless module and Bluetooth® 5 |
| Audio Controller | Integrated Realtek® ALC3246 High Definition Audio Codec (2 Channel) |
| Add-in cards |
Support for up to (1) additional PCIe SSD on Dell Precision Ultra-Speed drive (x8) with active cooling Thunderbolt™ 3 PCIe Card Serial and Parallel Port PCIe Card (Full Height) USB 3.2 Type CTM Gen 2 PCIe Card (Full Height) Powered USB 3.2 PCIe Card Smart Card Reader (CAC/PIV) with pre-boot authentication support |
| I/O Ports |
Front: Front of the chassis has 2 I/O offerings – Standard and Advanced with following differences in USB and SD card reader. (Availability depends on chassis selection and region) Standard offering 2x USB 2.0 Type A 1x USB 3.2 Type A Gen1 (5Gbps), with PowerShare 1x USB 3.2 Type CTM Gen2 (10Gbps), with PowerShare No SD card reader Advanced offering 1x USB 3.2 Type A Gen1 (5Gbps) 1x USB 3.2 Type A Gen2 (10Gbps) 1x USB 3.2 Type A Gen2 (10Gbps), with PowerShare 1x USB 3.2 Type CTM Gen2 (10Gbps) , with PowerShare With SD card reader Other Front ports 1x 3.5mm headphone jack with microphone Rear Starting from top, going left to right 2x DisplayPortTM 2x PS2 (Legacy for keyboard and mouse) 1x Optional Port (VGA, HDMI 2.0, DP++ 1.2, Type CTM w/DP-Alt mode) 2x USB 2.0 Type A (with SmartPower) 1x RJ45 Network Connector 2x USB 3.2 Type A Gen2 (10Gbps) 2x USB 3.2 Type A Gen1 (5Gbps) 1x Audio Line out |
| Chassis |
HxWxD: 13.19” x 6.95” x 13.58” (33.5cm x 17.7cm x 34.5cm), Min weight: 9.358Kg Bays: (3) internal 3.5” bays – supports (3) 3.5” or (4) 2.5” storage drives Slots: 2x M.2 2280 slots for PCIe NVMe™ SSDs, 1x M.2 2230 WLAN slot, 1x PCIe x16 Gen3 (full height), 1x PCI (full height), 1x PCIe x4 Gen3 (open ended, full height) Power Supply: 300W 85% efficient PSU (80PLUS Bronze Certified); 300W 90% efficient PSU (80PLUS Gold Certified Certified)Energy Star compliant; 460W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant; 550W 90% efficient PSU (80PLUS Gold Certified) Energy Star compliant; 1000W 90% efficient PSU (80 PLUS Gold Certified) Energy Star compliant (300W Bronze and 1000W Gold PSU not available in certain regions.) |
| Storage devices |
Optional: 1 optical drive: DVD-ROM; DVD+/-RW, Blu RayTM Writer (Note: optical drive not available with Smart Card Reader (CAC/PIV)) SD Card Reader (Note: SD card reader is available in Advanced front I/O offering only. Availability for a chassis may differ across regions.) |
| Security Options5 |
Trusted Platform Module TPM 2.0, Dell Data Guardian, Dell Endpoint Security Suite Enterprise, Dell HW Crypto Accelerator, Microsoft Windows Bitlocker, Local HDD data wipe via BIOS (“Secure Erase”), Encryption – SED HDD (Opal FIPS), Chassis lock slot support, Chassis Intrusion Switch, D-Pedigree (Secure Supply Chain Functionality), Setup/BIOS Password, Optional Smart Card keyboards, Intel® Trusted Execution Technology, Intel® Identity Protection Technology, Dell Secure Works, BIOS support optional Computrace, Intel Software Guard extensions |
| Systems Management6 | Dell Command | Intel vPro™ Out of Band |
| Regulatory & Environmental |
ENERGY STAR® configurations available including 80 PLUS® Bronze and Gold power supplies (Bronze not available in the Americas); EPEAT Silver registered. (see epeat.net for specific registration rating/status by country); China CECP; GS Mark. For a complete listing of declarations & certifications, see Dell’s regulatory & compliance homepage at dell.com/regulatory_compliance |
| Warranty & Support Services7 |
3-Year Limited Hardware Warranty and 3-year NBD On-Site Service after Remote Diagnosis Optional: Dell ProSupport is designed to rapidly respond to your business’s needs, help protect your investment and sensitive data and provide enhanced proactive support services to help reduce risk and complexity within your IT environment |
