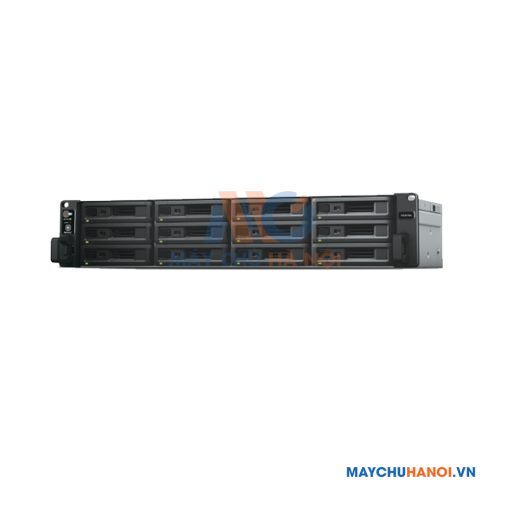

Thiết bị lưu trữ Synology RS3618XS

Mã: SSD176-1 Bình luận: 0 | Lượt xem: 2185

CPU : Intel Xeon 2.4 GHz – 4 nhân
RAM : 8 GB DDR4 ECC UDIMM, tối đa 64 GB.
Số lượng ổ cứng : 12 bay
Hỗ trợ lên đến 36-bay SATA 3.5″ / 2,5″ khi kết hợp với bộ mở rộng
Dung lượng tối đa : 648 TB.
LAN RJ-45 : 4 cổng

Cấu hình

- STORAGE: NAS
- STORAGE-BAY: 12 Bay
- STORAGE-Giá tiền: Từ 50 triệu – 80 triệu
- STORAGE-Hãng SX: SYNOLOGY

Xem thêm

Còn hàng

Chương trình khuyến mại

CPU : Intel Xeon 2.4 GHz – 4 nhân
RAM : 8 GB DDR4 ECC UDIMM, tối đa 64 GB.
Số lượng ổ cứng : 12 bay
Hỗ trợ lên đến 36-bay SATA 3.5″ / 2,5″ khi kết hợp với bộ mở rộng
Dung lượng tối đa : 648 TB.
LAN RJ-45 : 4 cổng

Thiết bị lưu trữ Synology RS3618XS

Description

Thiết Bị Lưu Trữ NAS Synology RS3618xs 12-Bays

RS3618XS

Synology RS3618xs là giải pháp lưu trữ hiệu suất cao, đáng tin cậy cho các doanh nghiệp quy mô lớn, đáp ứng các đòi hỏi khắt khe của môi trường làm việc. RS3618xs sử dụng CPU Intel Xeon Quad-core D-1521 và RAM DDR4 ECC có thể mở rộng tối đa 64GB. Nó đơn giản hóa việc quản lý dữ liệu và tối ưu môi trường ảo hóa. RS3618xs có thể mở rộng lên đến 36 ổ cứng với thời gian thiết lập cực kì nhanh chóng, hỗ trợ tối đa 432TB dung lượng.

Thiết bị có 4 cổng Lan RJ-45 1GbE, đáp ứng nhu cầu tăng băng thông và load balancing cho thiết bị. Đặc biệt, RS3618xs tích hợp 2 khe PCIe 3.0 phục vụ cho nhu cầu mở rộng. Bạn có thể gắn thêm M.2 SSD SATA hay card NIC 10GbE tuỳ theo ý muốn để tăng cường tốc độ truy xuất dữ liệu của thiết bị.

CPU Model	Intel Xeon D-1521
CPU Architecture	64-bit
CPU Frequency	Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Bộ nhớ
System Memory	8 GB DDR4 ECC UDIMM
Memory Module Pre-installed	8GB (1 x 8GB)
Total Memory Slots	4
Memory Expandable up to	64 GB (16 GB x 4)
Lưu trữ
Drive Bays	12
Maximum Drive Bays with Expansion Unit	36
Compatible Drive Type* (See all supported drives)	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD
Maximum Internal Raw Capacity	168 TB (14 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units	504 TB (168 TB + 14 TB drive x 24) (Capacity may vary by RAID types)
Maximum Single Volume Size	200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only) 108 TB
Hot Swappable Drive
Notes	“Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more) Expansion of the internal volume is only supported if the combined single volume size does not exceed the maximum limit of 108TB or 200TB if upgraded to 32GB RAM or more.
External Ports
RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
USB 3.0 Port	2
Expansion Port	2
PCIe
PCIe Expansion	2 x Gen3 x8 slots (x8 link)
Add-in-card support	M2D18 – Dual M.2 SATA/NVMe SSD adapter card for SSD cache PCIe Network Interface Card (Learn more)
File System
Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
Notes	exFAT Access is purchased separately in Package Center.
Appearance
Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
Weight	14.5 kg
Others
System Fan	80 mm x 80 mm x 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	50.2 dB(A)
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	500W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	142.76 W (Access) 55.05 W (HDD Hibernation)
British Thermal Unit	487.12 BTU/hr (Access) 187.84 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	EAC VCCI CCC RCM FCC CE BSMI
Warranty	5 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number	1024
Maximum iSCSI Target Number	256
Maximum iSCSI LUN	512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read/Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	RAID F1 RAID 5 RAID 6 JBOD
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
File Services
File Protocol	CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections	2000
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)	10000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Account & Shared Folder
Maximum Local User Accounts	16000
Maximum Local Groups	512
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	16
High Availability Manager
Log Center
Syslog Events per Second	3000
Virtualization
VMware vSphere 6 with VAAI
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Citrix Ready
OpenStack
Add-on Packages (learn more about the complete add-on package list)
Antivirus by McAfee (Trial)
Central Management System
Chat
Maximum Users	4000
Notes	The number of concurrent HTTP connections for Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server
Maximum Number of Concurrently Connected Devices	2000
Maximum Number of Concurrently Connected Devices (with RAM expansion)	10000
Maximum Number of Hosted Files (btrfs)	3,000,000
Maximum Number of Hosted Files (ext4)	3,000,000
Notes	The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing.
Document Viewer
Download Station
Maximum Concurrent Download Tasks	80
exFAT Access (optional)
MailPlus / MailPlus Server
Free Email Accounts	5 (Licenses required for additional accounts)
Maximum number of concurrent users	Up to 500
Maximum Server Performance	3,595,000 emails per day, approx. 109GB
Notes	The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users. For tested models with expandable memory, the maximum amount of RAM was installed. Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
DLNA Compliance
Moments
Facial recognition
Subject recognition
PetaSpace
Snapshot Replication
Maximum Snapshots per Shared Folder	1024
Maximum of system snapshots	65536
Surveillance Station
Maximum IP cam (Licenses required)	75 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*	2250 FPS @ 720p (1280×720) 2100 FPS @ 1080p (1920×1080) 1500 FPS @ 3M (2048×1536) 900 FPS @ 5M (2591×1944) 550 FPS @ 4K (3840×2160)
Total FPS (H.265)*	2250 FPS @ 720p (1280×720) 2250 FPS @ 1080p (1920×1080) 2250 FPS @ 3M (2048×1536) 1500 FPS @ 5M (2591×1944) 900 FPS @ 4K (3840×2160)
Total FPS (MJPEG)*	750 FPS @ 720p (1280×720) 375 FPS @ 1080p (1920×1080) 250 FPS @ 3M (2048×1536) 180 FPS @ 5M (2591×1944)
Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive
Recommended Number of Hosted Files	3,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Connections for PC Clients	1800 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Notes	For tested models with expandable memory, the maximum amount of RAM was installed. Exceeding the limits above may result in longer response time in file operations. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Maximum Users	2900
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station
Video Transcoding	Group 1 – Type 1 (See more)
Maximum Transcoding Channel Number	1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
Virtual Machine Manager
Recommended Virtual Machine Instances	8 (Learn more)
Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
Notes	Virtual Machine Manager is not supported on hosts running Synology High Availability. The specifications vary depending on system configuration and memory size.
VPN Server
Maximum Connections	40
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1
Optional Accessories	Surveillance Device License Pack RAMEC2133DDR4-8G DDR4 ECC UDIMM RAMEC2133DDR4-16G DDR4 ECC UDIMM Expansion Unit: RX1217/RX1217RP X 2 VS360HD VS960HD Synology RKS1317 – Rail Kit Sliding Synology Ethernet Adapter E10G18-T1 Synology Ethernet Adapter E10G18-T2 Synology Ethernet Adapter E10G17-F2 Synology M2D18 M.2 SSD adapter card
