| Hardware Specifications | |
| CPU | |
| CPU Model | Intel Atom C2538 |
| CPU Architecture | 64-bit |
| CPU Frequency | Quad Core 2.4 GHz |
| Hardware Encryption Engine (AES-NI) | |
| Memory | |
| System Memory | 2 / 8 GB DDR3 |
| Memory Module Pre-installed | 2GB (1 x 2GB) / 8GB (2 x 4GB) |
| Total Memory Slots | 2 |
| Memory Expandable up to | 16 GB (8 GB x 2) |
| Storage | |
| Drive Bays | 5 |
| Maximum Drive Bays with Expansion Unit | 15 |
| Compatible Drive Type |
|
| Maximum Internal Raw Capacity | 50 TB (10 TB HDD x 5) (Capacity may vary by RAID types) |
| Maximum Raw Capacity with Expansion Units | 150 TB (10 TB HDD x 15) (Capacity may vary by RAID types) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | |
| Notes |
|
| External Ports | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 4 |
| eSATA Port | 2 |
| PCIe | |
| PCIe Expansion | 1 x Gen2 x8 slot (x4 link) |
| Add-in-card support |
|
| File System | |
| Internal Drives |
|
| External Drives |
|
| Notes | exFAT Access is purchased separately in Package Center. |
| Appearance | |
| Size (Height x Width x Depth) | 166 mm x 250 mm x 243 mm |
| Weight | 4.46 kg |
Thiết bị lưu trữ NAS Synology DS1517
Mã: DS1517
Bình luận: 0 | Lượt xem: 411

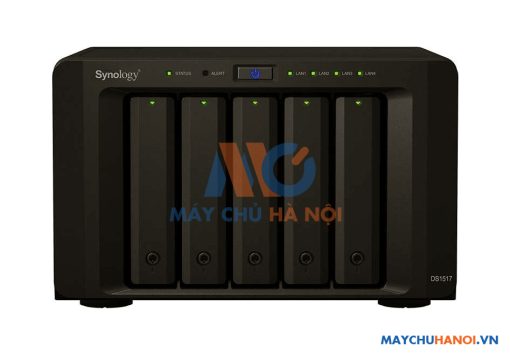

Synology DS1517
Liên hệ
Còn hàng
Synology DS1517
Thiết bị lưu trữ NAS Synology DS1517
