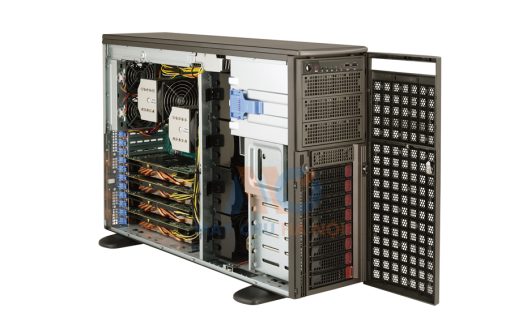

Supermicro SuperWorkstation 7047GR-TRF NVIDIA TESLA/Intel PHI 4U Rackmount

Moder Number

SYS-7047GR-TRF

Socket Type

 Dual Socket R (LGA 2011)

Processors

Intel® Xeon® processor E5-2600

Chipset

Intel® C602 chipset

Max Memory

16x 240-pin DDR3 DIMM sockets
Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 128 GB DDR3 ECC Un-Buffered memory (UDIMM)

Drive Bays

8x Hot-swap 3.5″ SATA Drive Trays

RAID Supports

SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1

Graphics

G200 (Renesas SH7757 BMC with graphic controller)

Expansion Slots

4 PCI-E 3.0 x16 (double-width)
2 PCI-E 3.0 x8 (1 in x16 slot)
1 PCI-E 2.0 x4 (in x8)

Input / Onput

SATA
2x SATA 3.0 ports (6Gbps)
8x SATA 2.0 ports (3Gbps)

LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port

USB
9x USB 2.0 ports total
(4x rear + 4x via header + 1x Type A)

Video
1x VGA port

Serial Port / Header
1x Fast UART 16550 port / 1 Header

Ethernet

Intel® i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

PSU

1620W high-efficiency redundant power supply w/ PMBus

Chassis Type

 4U Rackmountable / Tower CSE-743TQ-1200B-SQ

OS

32 or 64 bit Windows / Linux

Dimensions

17.8 cm x 76.2cm x 67.3cm : Width x Height x Depth

Optical Drive

N/A
