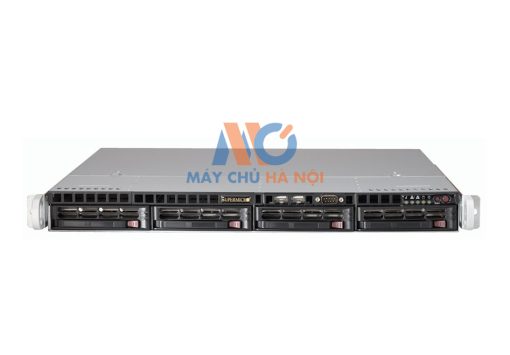

SUPERMICRO SuperChassis CSE-813MTQ-520CB

Name: SUPERMICRO SuperChassis CSE-813MTQ-520CB
SKU: CSE-813MTQ-520CB
Price: 6800000 VND
Availability: InStock

Mã: CSE-813MTQ-520CB Bình luận: 0 | Lượt xem: 1197

Product SKUs CSE-813MTQ-600CB SuperChassis 813MTQ-600CB (Black) Form Factor 1U chassis support for max. motherboard size – 12″ x 10″ ATX Processor Support Dual Intel® Xeon® Processors Dimensions Height 1.7″ (43mm) Width 17.2″ (437mm) Depth 19.8″ (503mm) Gross Weight 27 lbs (12.2kg) Available Colors Black Expansion Slots 1x full-height, half-length PCI expansion […]

Bảo hành: 12 tháng

Còn hàng

Chương trình khuyến mại

SUPERMICRO SuperChassis CSE-813MTQ-520CB

Mô tả

Product SKUs

CSE-813MTQ-600CB	SuperChassis 813MTQ-600CB (Black)


Form Factor

1U chassis support for max. motherboard size – 12″ x 10″ ATX


Processor Support

Dual Intel® Xeon® Processors


Dimensions

Height	1.7″ (43mm)
Width	17.2″ (437mm)
Depth	19.8″ (503mm)
Gross Weight	27 lbs (12.2kg)
Available Colors	Black


Expansion Slots

1x full-height, half-length PCI expansion slot (Riser Card Required)


Drive Bays

Hot-swap	4x 3.5″ Hot-swap SAS / SATA drive bays SAS or enterprise SATA HDD only recommended


SAS / SATA Backplane

1x SAS / SATA Backplane


Peripheral Drives

DVD-ROM	Slim DVD-ROM drive (Optional)


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED
Ports	2x Front USB Ports 1x Serial COM Port


Motherboard(s) for CSE-813MTQ-600CB


X8DTL-3	X8DTL-3F	X8DTL-6
X8DTL-6F	X8DTL-6L	X8DTL-i
X8DTL-iF	X8DTL-L


Server(s) for SC813MTQ-600CB


6016T-MTHF


System Cooling

Fans	4x 4cm 4-pin PWM fans



Operating Environment (System)

Operating Temperature Range	5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range	-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range	8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)


Power Supply

600W AC multi output power supply w/ PFC
AC Voltage	100-240 V, 50-60 Hz, 7.5-3.1 Amp
+5V	20 Amp
+5V standby	3 Amp
+12V	49 Amp
+3.3V	16 Amp
Certification	Gold Certified [ Test Report ]
