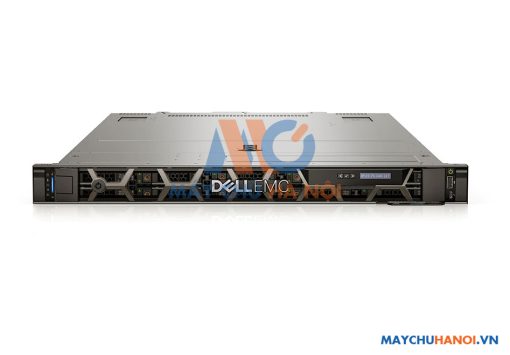

Server Dell PowerEdge R650 Rack

Processor

Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 40 cores per processor
Direct Contact Liquid Cooling (DCLC) option: Yes

Operating System

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

Chipset

Intel® C620 series chipset

Accelerators

Up to three 75 W single-width GPU

Memoryi

DIMM Speed
Up to 3200 MT/s

Memory Type
RDIMM
LRDIMM
Intel® Persistent Memory 200 series (BPS)

Memory Module Slots
32 DDR4 DIMM slots

Maximum RAM
RDIMM 2 TB
LRDIMM 4 TB
NVDIMM 128 GB

Intel® Persistent Memory 200 series (BPS) 8 TB

Storage

Front Bays
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB

Rear bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB

Storage Controllers

Internal Controllers
PERC H745, H345, HBA355I, H755, H755N

External Controllers
PERC H840, HBA355E

Software RAID
S150

Internal Boot
Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

Internal Dual SD Module

Security

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server
iDRAC9
Quick Sync 2 wireless module
iDRAC Service Module

Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

Mobility
OpenManage Mobile

Tools
RACADM CLI
iDRAC RESTful API with Redfish
IPMI
System Update Utility
Update Catalogs

OpenManage Integrations
BMC® Truesight
Microsoft® System Center
Red Hat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager

OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager Nagios Core
Nagios® XI

Power Supplies

800 W Platinum AC/240 HVDC
1100 W Titanium AC/240 HVDC
1400 W Platinum AC/240 HVDC
Hot plug power supplies with full redundancy option

Ports

Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
2 x RJ-45
1 x VGA port (optional for liquid cooling configuration)

Internal Ports
1 x USB 3.0

Slots

Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots

Video Card
1 x VGA

Bezel

Optional LCD bezel or security bezel

Form Factor

1U rack server

Dimensions & Weight

Height
42.8 mm (1.68 inches)

Width
482 mm (18.97 inches)

Depth
809 mm (31.85 inches) – without bezel
822.84 mm (32.39 inches) – with bezel

Weight
21.2 kg (46.7 lbs)

Rack Support

ReadyRails™ sliding rails with optional cable management arm (CMA) for 4-post racks (optional adapter brackets required for threaded hole racks).

ReadyRails™ static rails for 4-post and 2-post racks. Sliding rails with optional strain relief bar (SRB).

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
