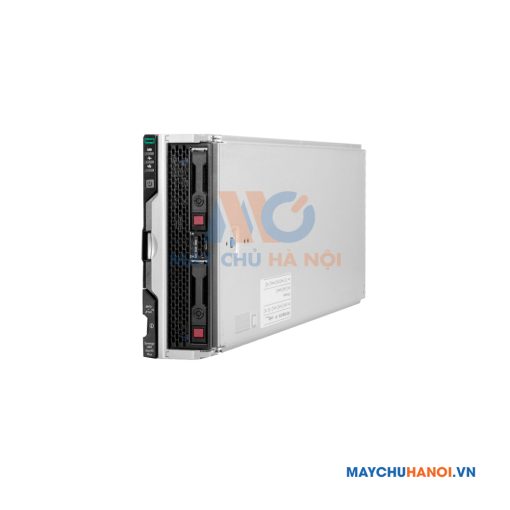

MÁY CHỦ HPE Synergy 480 Gen10 Plus
Describe | HPE Synergy 480 Gen10 Plus Compute Module |
processor | Supports up to 2 Intel® 3rd Generation Xeon® Scalable family processors, providing 8 to 40 core solutions |
chipset | Intel® C621 |
Memory | Support up to 32 DIMMs, DDR4-3200, advanced ECC for memory protection; memory mirroring mode; online memory backup mode |
storage controller | HPE Smart Array Software RAID S100i Gen10 array card HPE Smart Array E208i-c SR Gen10 12G SAS array card HPE Smart Array P204i-c SR Gen10 12G SAS array card HPE Smart Array MicroChip Smart RAID P416ie-m SR 12G SAS array card Support RAID 0, 1, 5, 6, 10, 50, 60, 1ADM, 10ADM |
expansion slot | Three 16 x PCIe 4.0 Mezzanine slots |
hard disk | Several drive box options are available: Diskless hard disk box, can be used with M.2 2 SFF SAS/SATA; 4x SFF NVMe (with options for 2x NVMe and 2x SAS/SATA); Hardware RAID M.2 boot option, including dual 480 GB M.2 drives |
network controller | HPE Synergy 4820C 10/20/25Gb Converged Network Adapter HPE Synergy 6820C 25/50Gb Converged Network Adapter HPE Synergy 4610C 10/25Gb Ethernet Adapter HPE Synergy 6410C 25/50Gb Ethernet Adapter HPE Synergy 6810C 25/50Gb Ethernet Adapter |
GPU expansion cage | Offers multiple options Front GPU box, supporting a standard GPU card 2GPU expansion cage, supporting 2 standard GPU cards 4GPU expansion cage, supporting 4 standard GPU cards 8GPU expansion cage, supporting 8 standard GPUs |
GPU card model | NVIDIA A10 GPU graphics card NVIDIA A40 GPU graphics card NVIDIA T4 GPU graphics card, etc. |
internal interface | MicroSD slot, M.2 interface, USB3.0 interface |
power supply | Standard four 2000/2400W platinum power supplies, support N+N redundancy |
Operating temperature | 5°C~40°C (The operating temperature support is affected by different configurations, please refer to the detailed product technical documentation for details)
Storage environment temperature: -40ºC~70ºC |
Module shape | half height single width |
weight | 8.16kg |
Applicable chassis | Synergy 12000 chassis, 10U height, supports 12 pieces of Synergy 480 Gen10 Plus computing modules |
infrastructure management | HPE Synergy Composer2 powered by HPE OneView, HPE iLO, HPE Image Streamer optional |
