Mainboard Supermicro X11DPFR-S

CPU Support: 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
RAM Support: Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots; Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only);

Name: Mainboard Supermicro X11DPFR-S
SKU: X11DPFR-S
Availability: InStock

Mã: X11DPFR-S Bình luận: 0 | Lượt xem: 719

Bảo hành: 12 tháng

Còn hàng

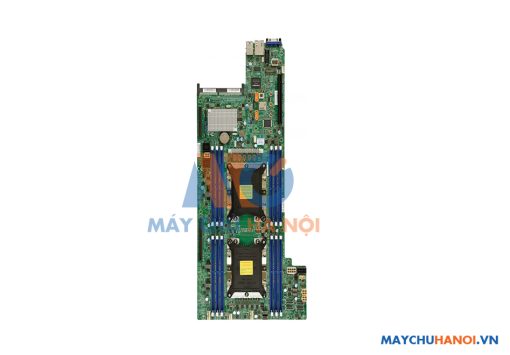

Mainboard Supermicro X11DPFR-S

MODEL	X11DPFR-S
Processor	Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 165W, 2 UPI up to 10.4 GT/s
Chipset	Intel® C621
Form Factor	Proprietary FatTwin, 6.8” x 19.436” (17.27cm x 49.37cm)
Memory Capacity & Slots	Up to 768GB Registered ECC RDIMM and DDR4- 2666MHz, Up to 1.5TB Registered ECC LRDIMM, in 12 DIMM slots
Expansion Slots	Or 1 PCI-E 3.0 x16 Left Riser Slot and 1 PCI-E 3.0 x16 Right Riser Slot and 1 PCI-E 3.0 x16 connector for SMC add-on cards M.2 Interface: PCI-E 3.0 x4
Onboard RAID Controller	Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
Onboard LAN	Single LAN with SIOM (PCI-E 3.0 x16) Networking Slot
Onboard VGA	1 VGA port, Aspeed AST2500 BMC
USB Ports	2 USB 3.0 ports (2 rear via headers)
Other Onboard I/O Devices	TPM 2.0 Header
Manageability	Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5
PC Health Monitoring	+1.8V, +12V, +3.3V, +5V, +5V standby, Monitors CPU voltages, Supports system management utility, VBAT
Thermal Control	Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
Other Features	Chassis intrusion detection, Chassis intrusion header, RoHS
BIOS	AMI UEFI
