Form factor/height | Tower/4U (rack-mountable) |
Processor |
1 x Intel® Xeon® Processor E5-2609 v3 (15M Cache, 1.90 GHz) |
Cache | Up to 30 MB per processor |
Memory |
1 x 8GB PC4-19200 ECC 2400 MHz Registered DIMMs |
Media bays | One optional optical bay for 2.5-inch model |
RAID support |
ServeRAID M1215 SAS/SATA Controller (0 , 1 , 10 or RAID 5, 50 with optional upgrade) |
Power supply (std/max) |
1/2 hot-swap redundant 550 W/750 W/900 W, 80 PLUS® Platinum 1 x 550W |
Hot-swap components | Power supply and hard disk drives |
Network interface |
Intel I350AM4 quad-port Gigabit Ethernet |
Expansion slots | Up to eight PCIe expansion slots; Six PCIe slots standard, plus two additional PCIe slots when the second processor is populated. An optional PCI-X slot is available via an interposer conversion kit. |
Maximum internal storage | Up to 51.2 TB of 2.5-inch hot-swap drives (HDD upgrade options required) or 48 TB of 3.5-inch hot-swap or simple-swap SAS/SATA HDDs |
Energy efficiency | Fixed power supply compliant with 80 PLUS Bronze/ Redundant power supply compliant with 80 PLUS Gold |
Systems management | IMM2 with optional FoD remote presence, Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics panel, Automatic Server Restart, IBM Systems Director Active Energy Manager |
Operating systems supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere |

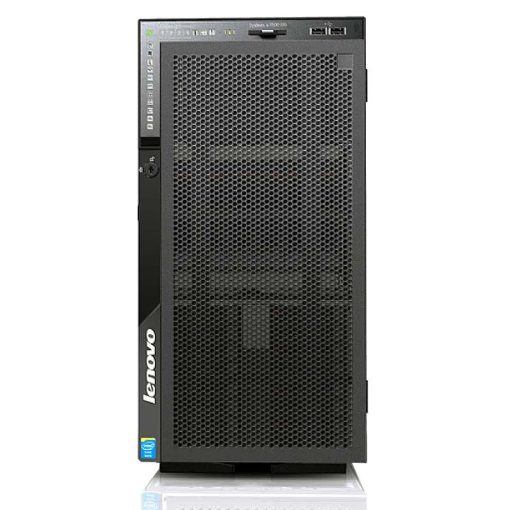

IBM x3500 M5-E5-Cau Hinh 1
