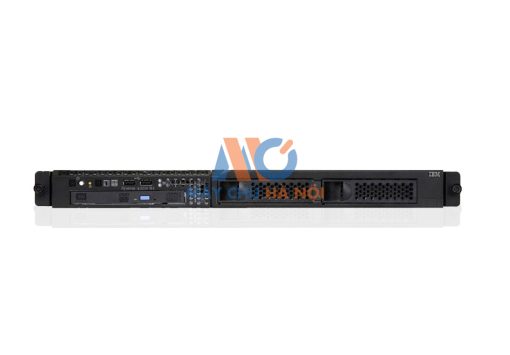

IBM x3250 M5 (5458-A2A) 1U Rackmount System LGA-1150

1x Pentium 2C G3420 (3M Cache 3.2GHz)

One Intel Xeon processor E3-1200 v3 product family with four cores up to 3.7 GHz, up to 1600 MHz memory speed, 8 MB L3 cache; or
one Intel Core-i3 processor 4100/4300 product families with two cores up to 3.7 GHz, up to 4 MB L3 cache, and 1600 MHz memory speed (CTO only); or
one Intel Pentium processor G3200/G3400 product families with two cores up to 3.4 GHz, 3 MB L3 cache, and up to 1600 MHz memory speed.

1x 4GB DDR3- PC3L 12800/1600MHz ECC UDIMM

Four dual inline memory module (DIMM) sockets. Support for UDIMMs. DIMM speeds up to 1600 MHz.

Non-HDD

Up to eight 2.5-inch hot-swap SAS/SATA drive bays, up to eight 2.5-inch simple-swap drive bays, up to four 3.5-inch hot-swap SAS/SATA drive bays, or up to four 3.5-inch SATA simple-swap drive bays.

ServeRAID C100 RAID (0,1)

RAID 0, 1, and 10 with the C100. RAID 0, 1, and 10 with the H1110, M1115, or optional M5110. Optional upgrade to RAID 5 is available for the C100. Optional upgrade to RAID 5 and 50 is available for the M1115.

Non-DVD

One, for models with 2.5″ drives. Support for optional DVD-ROM or Multiburner.

Up to two slots, depending on the riser cards installed. The slots are specified:

• Slot 1: PCIe 3.0 x4 (x4-wired); dedicated slot for H1110
• Slot 2: PCIe 3.0 x8 (x8-wired); full-height, half-length

Two USB 3.0 ports on the front. Four USB 2.0 ports, one DB-15 video port, one DB-9 serial port, and four RJ-45 GbE network ports on the rear. One internal USB port (for embedded hypervisor).

Up to four integrated Gigabit Ethernet 1000BASE-T RJ-45 ports with the onboard BCM5719 controller (two ports are enabled, and additional two ports require the optional software FoD upgrade to enable them).

1x 300Watts fixed

Up to two redundant hot-swap 460 W AC power supplies (80 PLUS certification), or one fixed 300 W AC power supply (80 PLUS certification).

Option

Support Microsoft Windows Server 2012 R2, 2012, and 2008 R2, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 11, VMware vSphere 5.5 (ESXi) and VMware vSphere 5.1 (ESXi).
