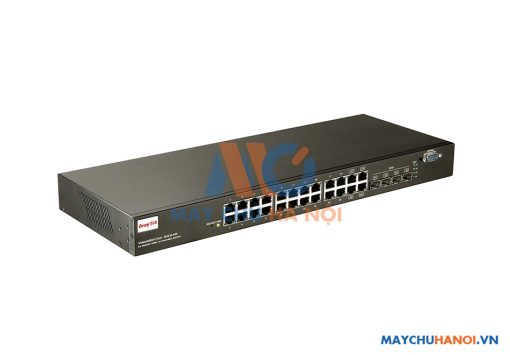

Draytek VigorSwitch G2240

Technical Specifications of VigorSwitch G2240

Interface

24 x 10/100/1000 Base-T RJ-45

4 x SFP Dual-media Ports (Shared with 4 Gigabit Ports)

1 x Console Port

1 x Restart Button

Standard Compliance

IEEE 802.3x Flow Control Capability

IEEE 802.1q VLAN

IEEE 802.1p QoS

Performance

Switching Capacity

24 Gigabit Ethernet Ports with Non-blocking Wise Speed Performance

8 K MAC Addresses

Supports Jumbo Frame, Up to 9K

Broadcast / Multicast Storm Suppression

Port Mirroring

VLAN

Port-base VLAN

IEEE 802.1q Tag-base VLAN, Up to 4K Active VLANs

Support Q-in-Q VLAN

Multicast VLAN Management

VSM

Up to 16 Switches Can be Managed via Single IP

Virtual Stacking, No Extra Stacking Hardware and Physical Central Wiring Closet are Needed

QoS

Supports QCL for Layer 4 TCP/UDP Port and ToS Classification

Supports IEEE 802.1p QoS with Four-level Priority Queue

Supports Priority in a Q-in-Q Tag

Bandwidth Control

Supports Bandwidth Rating Per Port Ingress and Egress Rate Limit 500kbps ~ 1000Mbps with 1Kbps

Forwarding rate (based on 64-byte packets) : Up to 35.7 mpps

Backplane Capacity: 8.8Gbps

Protocol

LACP

Port Trunking with 12 Trunking Groups

Up to 16 Ports for Each Group

GVRP / GARP

IEEE 802.1q with GVRP / GARP

Multicasting

Supports IGMP Snooping Including Active and Passive Modes

STP / RSTP / MSTP

IEEE 802.1d / IEEE 802.1w / IEEE 802.1s

Network Security

IEEE 802.1x Access Control for Port Based and MAC Based Authentication

Management Access Policy Control

Access Control List

IP-MAC-Port Binding

DHCP Relay Agent

SNMPv1, v2C Network Management

RFC 1213 MIB (MIB-II)

Interface MIB

Address Translation MIB

IP MIB

ICMP MIB

TCP MIB

UDP MIB

SNMP MIB

RFC 1757 RMON MIB

Statistics Group 1

History Group 2

Alarm Group 3

Event Group 9

RFC 1493 Bridge MIB

RFC 1643 Ethernet MIB

Enterprise MIB

Operation Voltage

100-240 V

Consumption

30W

Weight

2.82Kg

Dimensions

209 x 442 x 44 mm

Warranty

1 Year Limited
