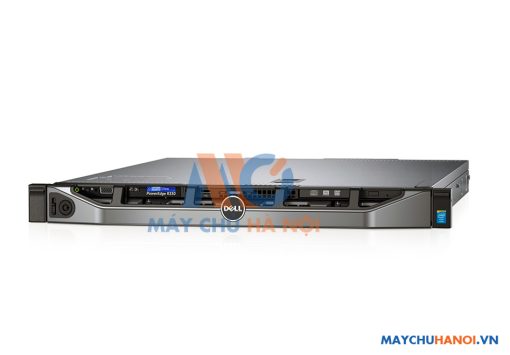

Dell PowerEdge R430 – 2.5 INCH cấu Hình 2

• Moder Number

Dell PowerEdge R430 Server 2.5″ ”

• Chipset

• Intel C610 series chipset

• Processor

1 x Intel® Xeon® Processor E5-2630 v4 (25M Cache, 2.20 GHz)

• Intel® Xeon® processor E5-2600 v3 product family
  Processor sockets: 2
  Internal interconnect: Up to 9.6GT/s
  Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16

• Memory Capacity

1 x 16GB PC4-19200 ECC 2400 MHz Registered DIMMs

DDR4 DIMMs at up to 2133MT/s
Maximum RAM: Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB

• Maximum RAM

• • Up to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB

• HDD

• • 2 x 300GB Dell 10K RPM 12Gbps SAS 2.5 Hot Plug Hard Drive

  • • Multiple R430 chassis available:
      10 x 2.5″ hot-plug drives
      8 x 2.5” hot-plug drives
      4 x 3.5” hot-plug drives
      4 x 3.5” cabled drives

• Hypervisor Support

• • • Citrix XenServer
    • Microsoft Windows Server 2008, with Hyper-V
    • VMware vSphere



• Internal RAID Controllers

• • • PERC S130
    • PERC H330
    • PERC H730
    • PERC H730P
    • External:
    • PERC H830

• Operating Systems

• • • Microsoft Windows Server 2008/2012 SP2, x86/x64 (x64 includes Hyper-V)
    • Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V)
    • Novell SUSE Linux Enterprise Server
    • Red Hat Enterprise Linux
    • VMware vSphere
